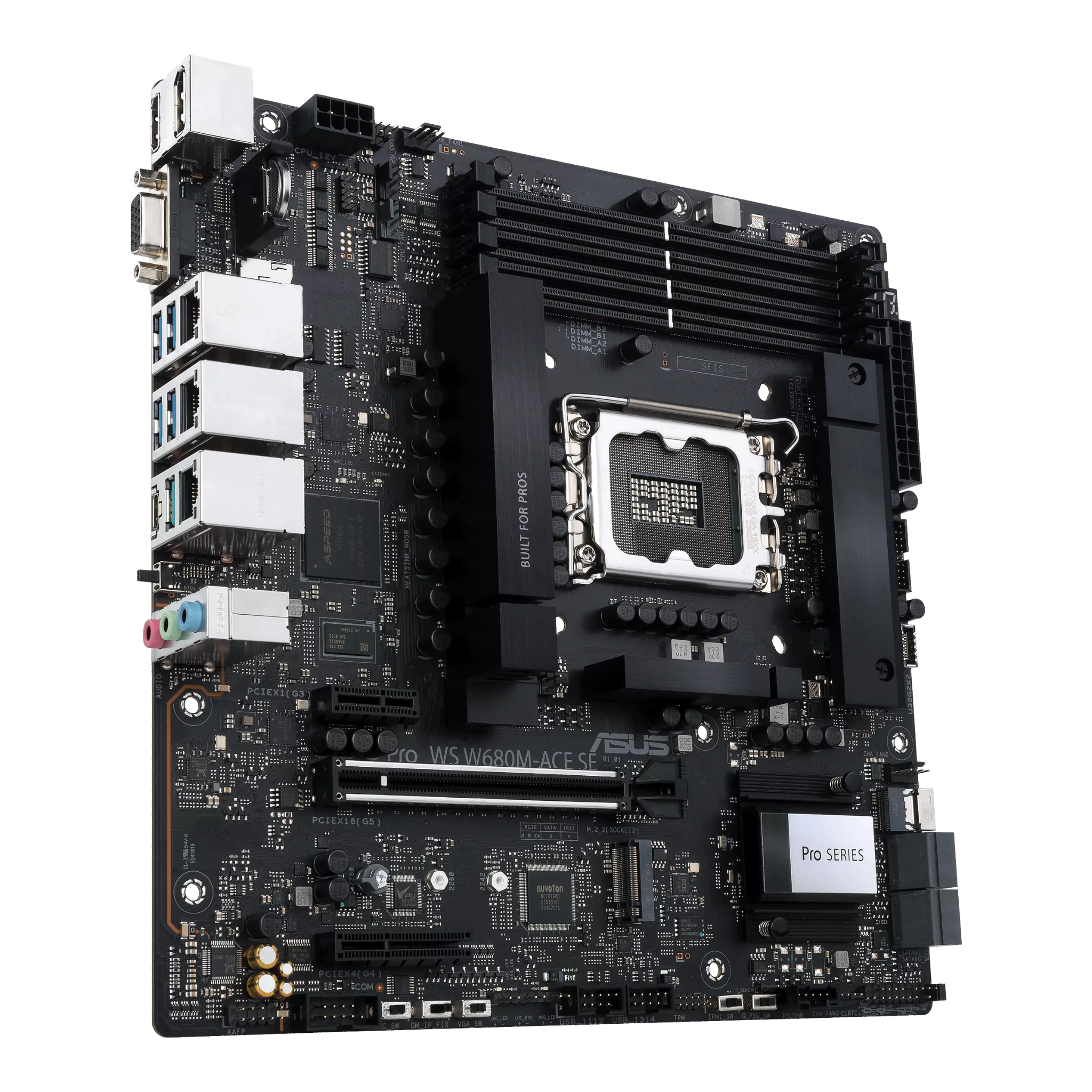

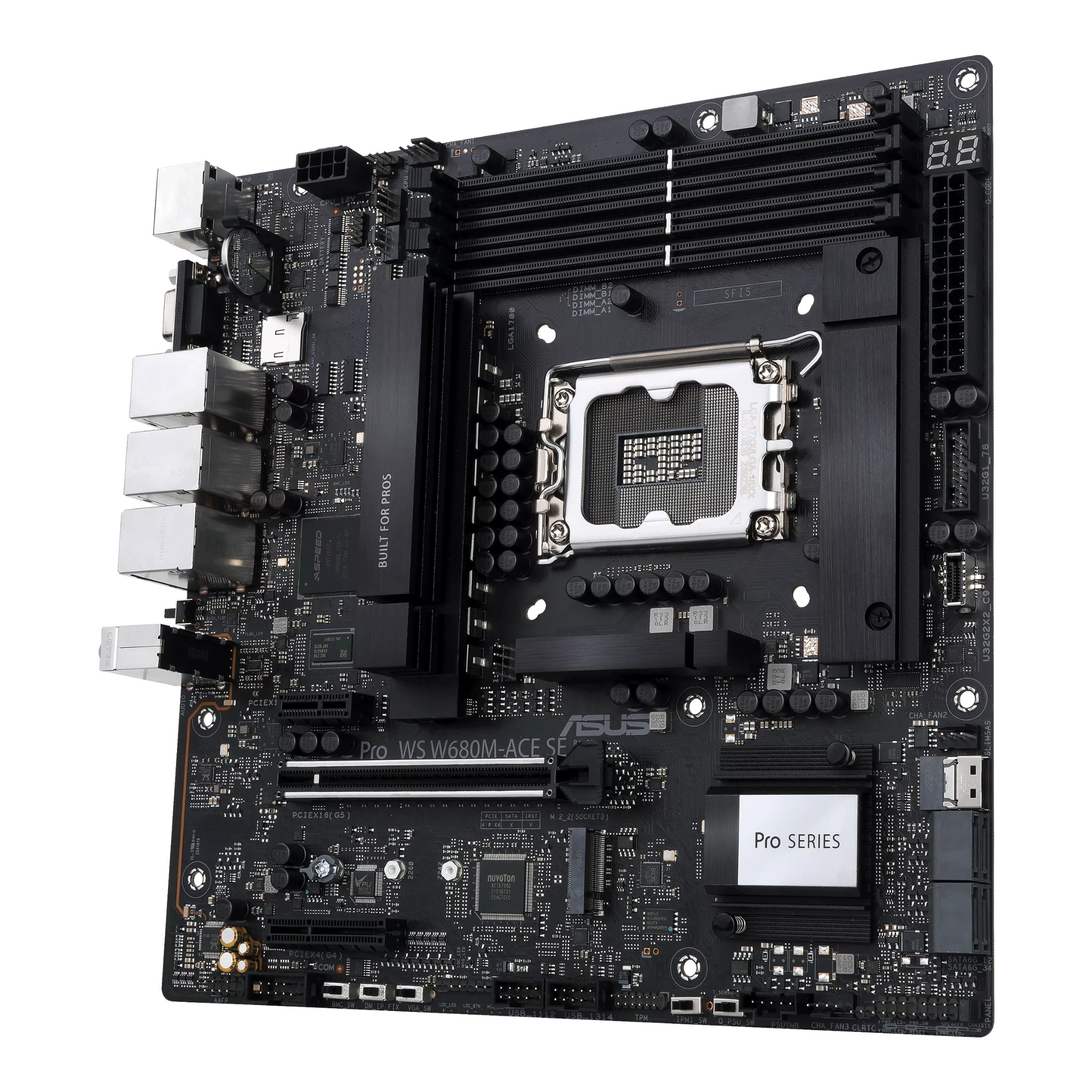

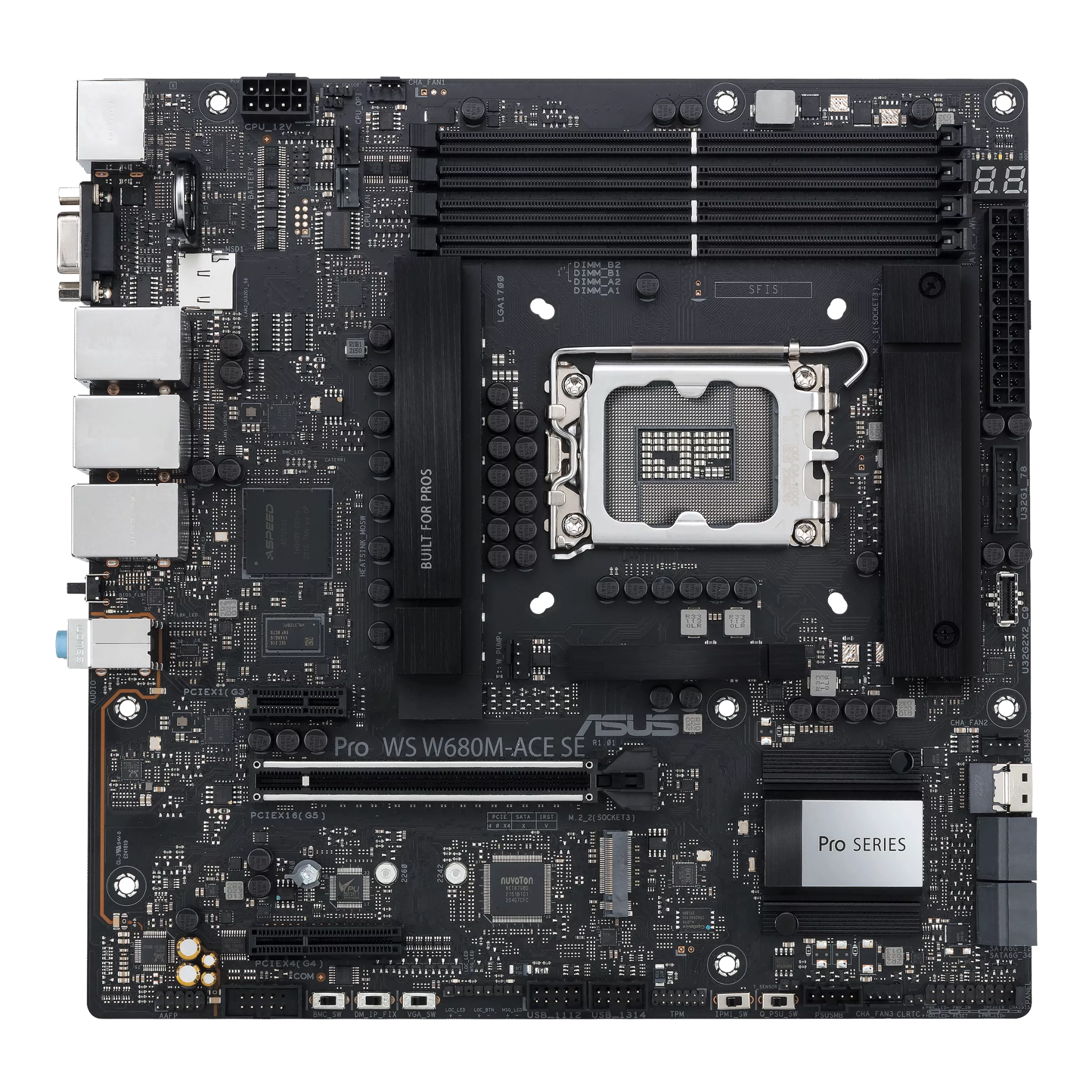

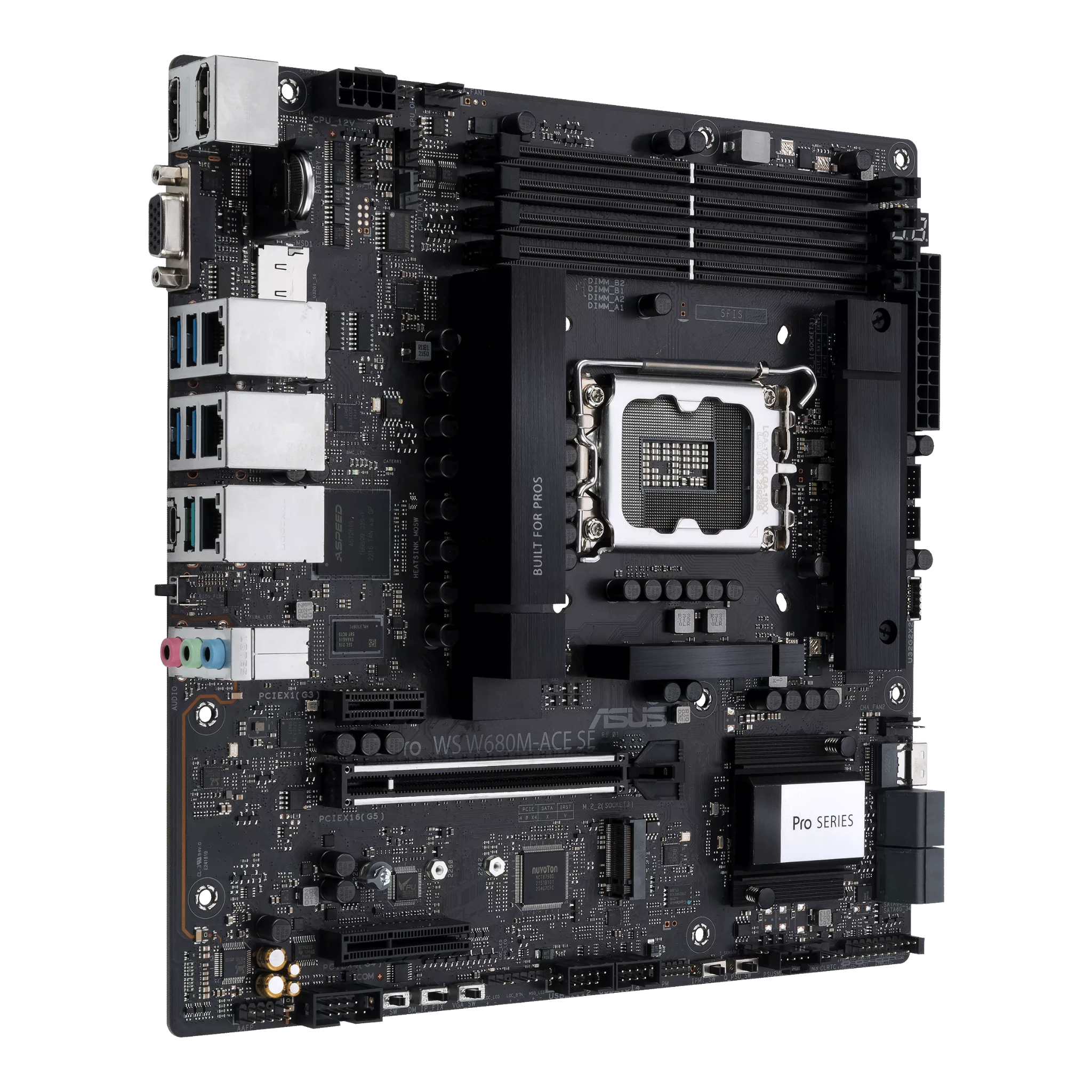

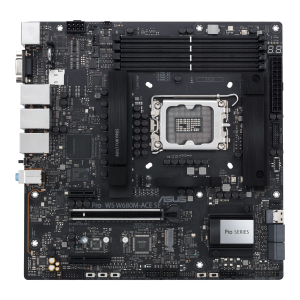

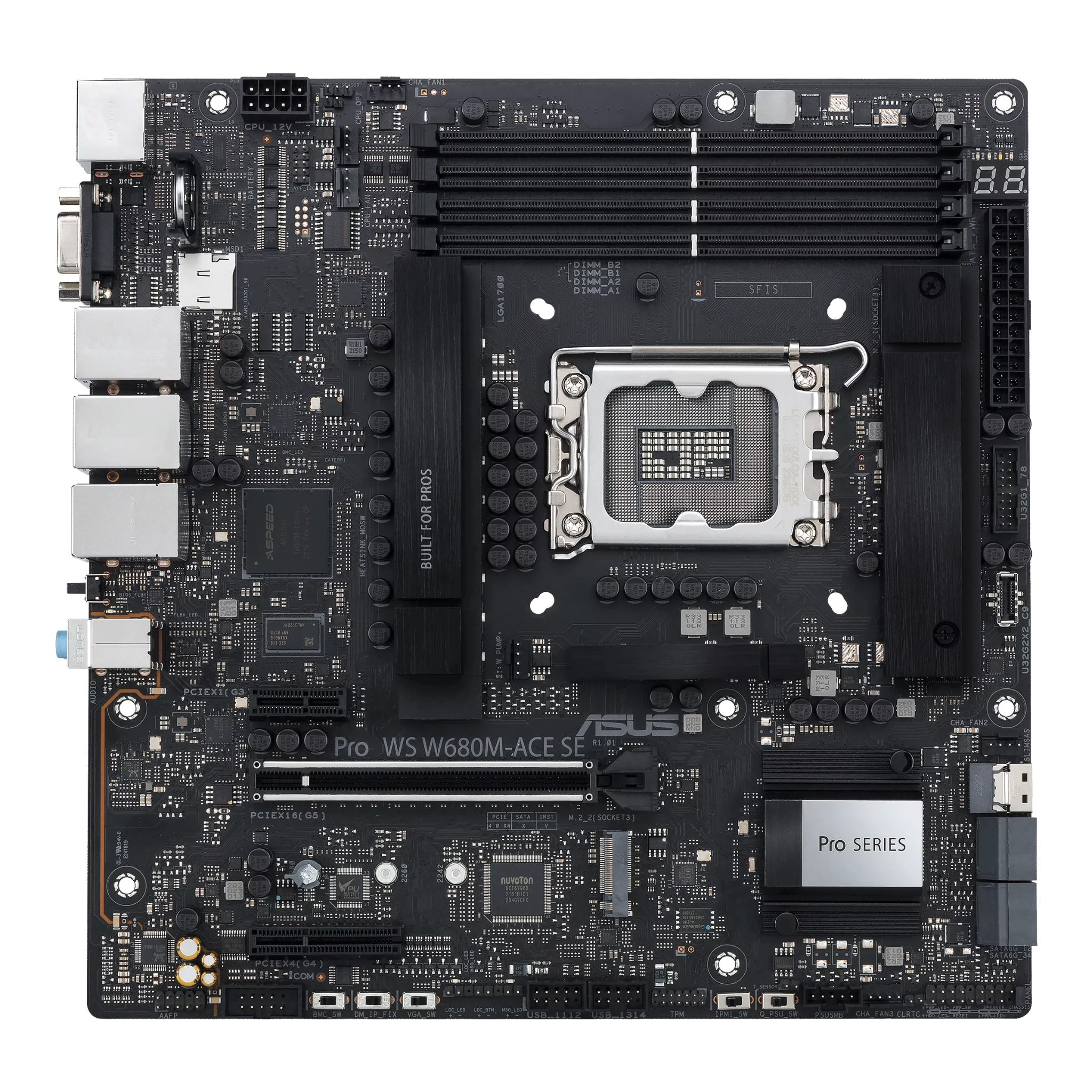

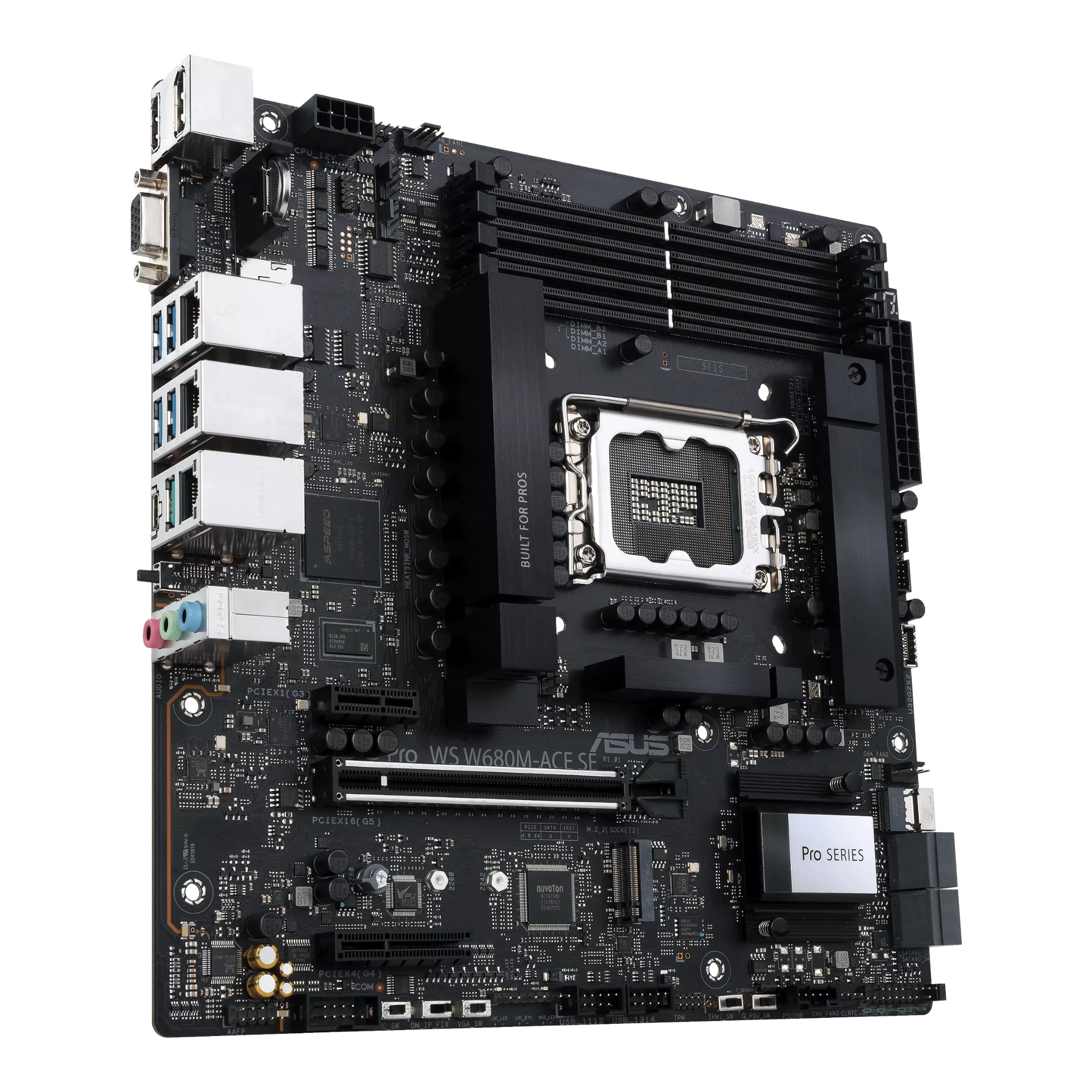

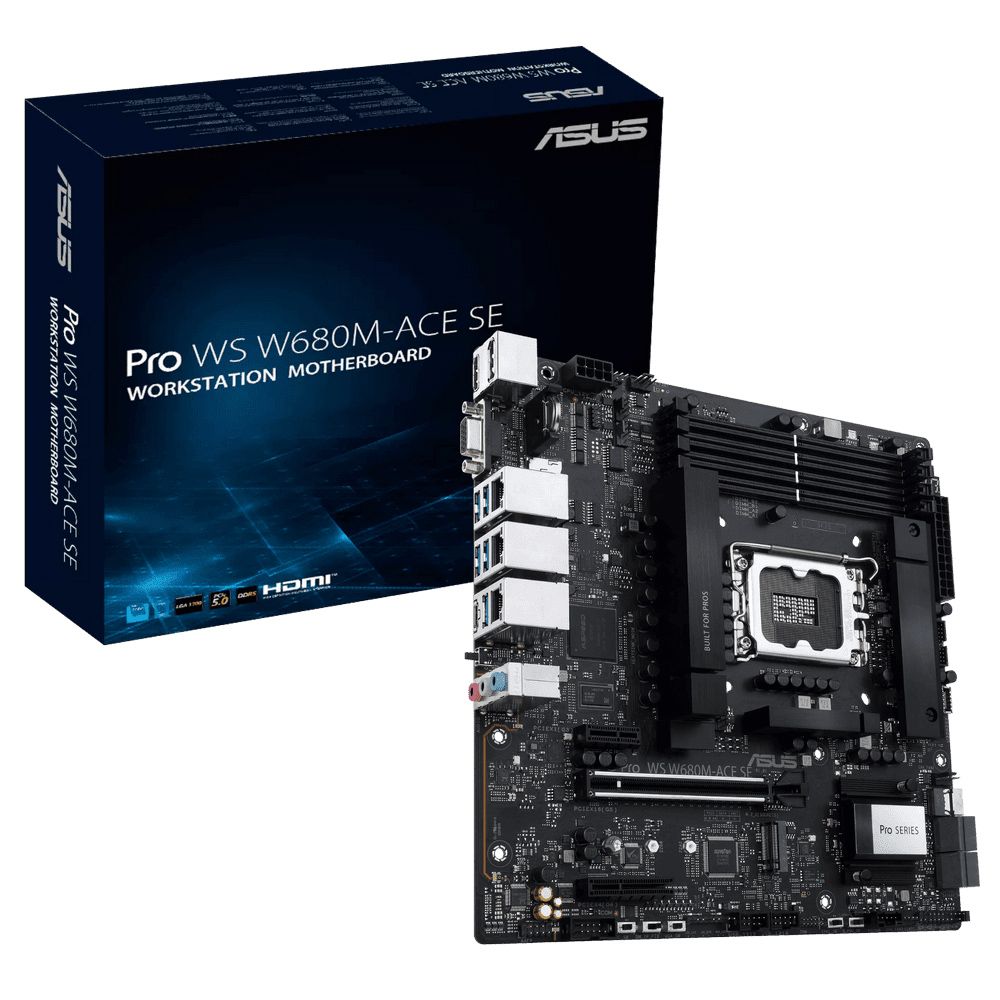

Mainboard ASUS Pro WS W680M-ACE SE

CPU Support:

• Intel® 13th Gen & 12th Gen Processors (LGA1700)

Memory:

• 4 DDR5 DIMM slots, max 192GB, ECC and Non-ECC Un-buffered
• Supports Intel® XMP

Storage:

• 2x M.2 slots (PCIe 4.0 x4)
• 4x SATA 6Gb/s ports
• 1x SlimSAS slot (supports PCIe 4.0 x4 or SATA)

Networking:

• 2x Intel® 2.5 Gb Ethernet ports
• 1x Realtek 1 Gb Ethernet port (BMC dedicated)

Expansion Slots:

• 1x PCIe 5.0 x16 slot
• 1x PCIe 4.0 x4 slot
• 1x PCIe 3.0 x1 slot

USB Ports:

• Rear: 2x USB 3.2 Gen 2 (1x Type-A, 1x Type-C), 4x USB 3.2 Gen 1
• Front: 1x USB 3.2 Gen 2×2 (Type-C), additional headers for 2x USB 3.2 Gen 1 and 4x USB 2.0

Other Features:

• DisplayPort, HDMI, VGA outputs
• 7.1 surround sound audio
• Wi-Fi module sold separately (M.2 slot)
• ASUS 5X Protection III
• ASUS Q-Design
• ASUS Thermal Solution
• ASUS EZ DIY
• UEFI BIOS
• 24/7 reliability

Dimensions:

• micro-ATX (9.6 x 9.6 inch)

Operating System:

• Windows 11, Windows 10 64-bit
