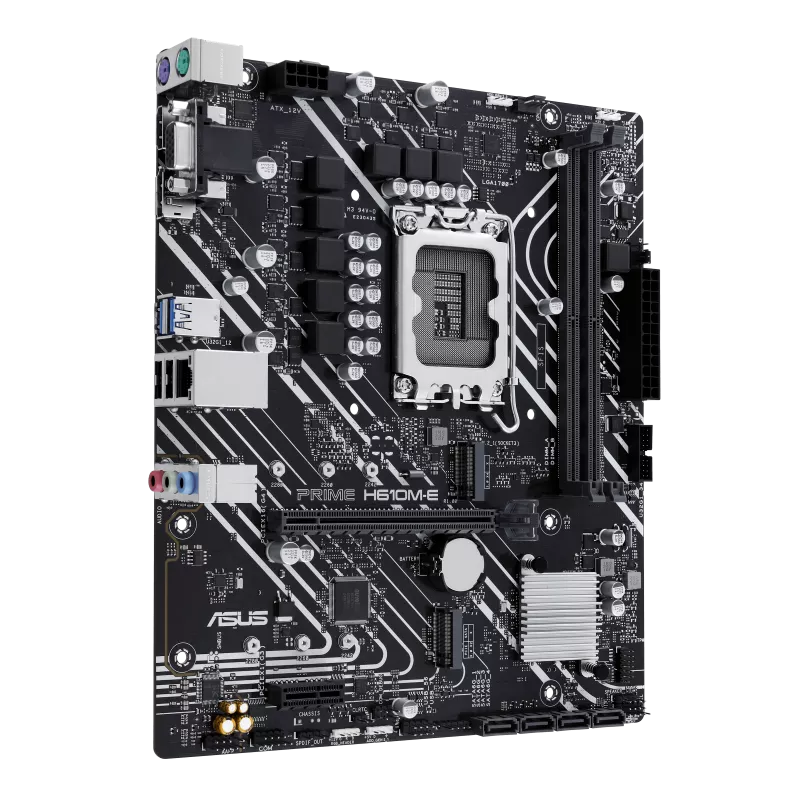

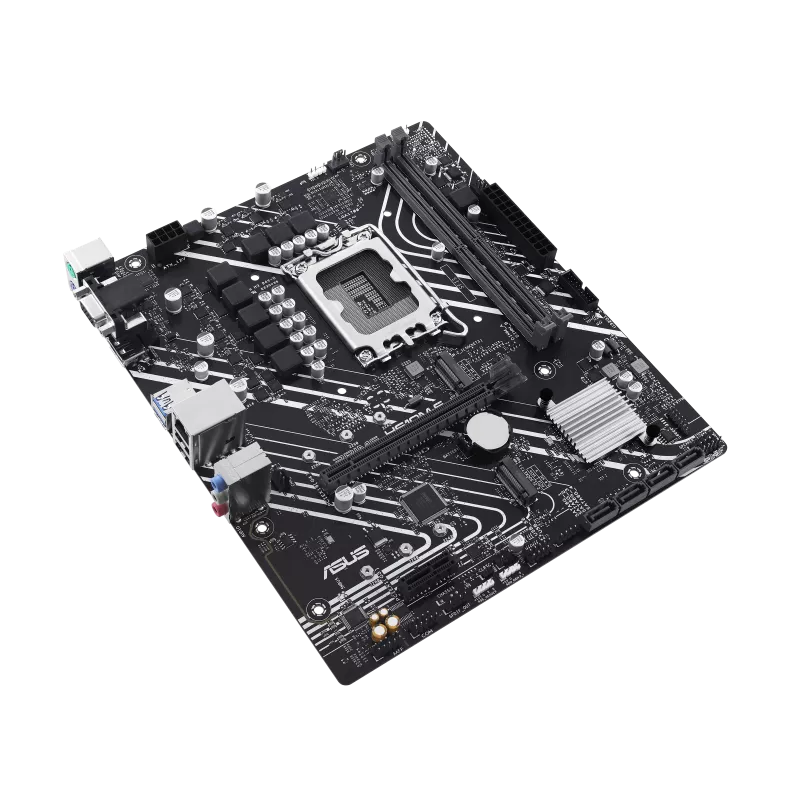

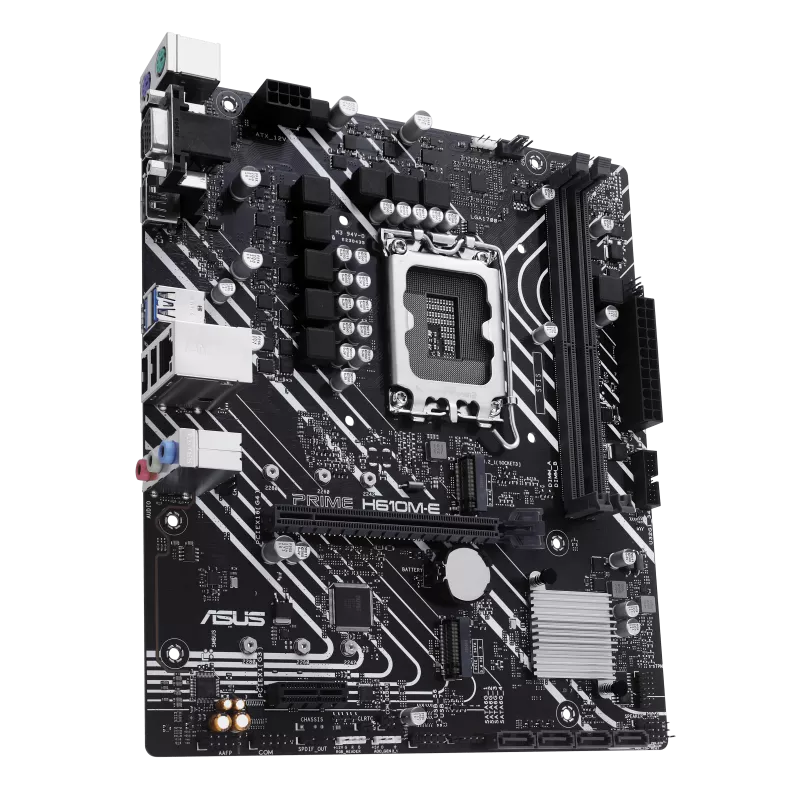

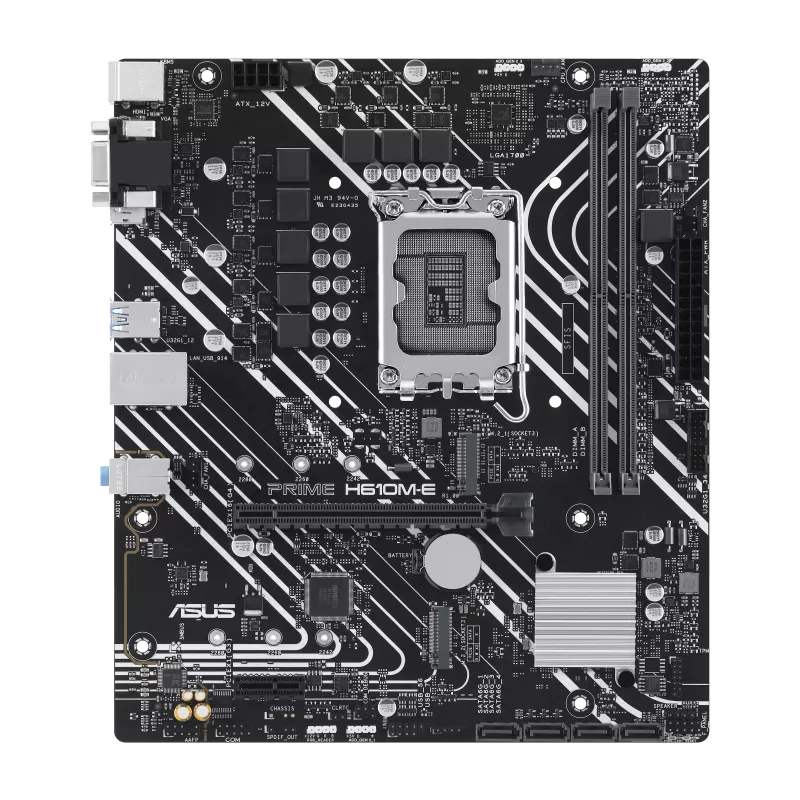

Mainboard ASUS Prime H610M E CSM DDR5

CPU Support:

• Intel Socket LGA1700 for 13th Gen Intel Core processors, 12th Gen Intel Core, Pentium Gold, and Celeron processors.
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 (availability depends on the CPU).

Chipset:

• Intel H610 Chipset

Memory:

• 2 DIMM slots, support for up to 96GB of DDR5 memory at various speeds (5600/5400/5200/5000/4800).
• Dual-channel memory architecture.
• Supports Intel Extreme Memory Profile (XMP).

Graphics:

• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI port (supports 4K@60Hz as specified in HDMI 2.1).
• Graphics specifications may vary depending on the CPU type.

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for 13th and 12th Gen Intel Processors.
• 1 x PCIe 3.0 x1 slot.

Storage:

• 2 x M.2 slots (Key M) and 4 x SATA 6Gb/s ports.

Ethernet:

• 1 x Realtek 1Gb Ethernet.

USB:

• Rear USB: 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 2 x USB 2.0 ports (Type-A).
• Front USB: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 2 x USB 2.0 headers (support 3 additional USB 2.0 ports).

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC.
• Supports up to 24-Bit/192 kHz playback.
• Audio Shielding, premium audio capacitors, dedicated audio PCB layers.

Back Panel I/O Ports:

• 2 x USB 3.2 Gen 1 (5G) ports (Type-A), 2 x USB 2.0 ports (Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMI port, 1 x Realtek 1Gb Ethernet port, 3 x audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port.

Internal I/O Connectors:

• Various connectors for fans, power, storage, and USB.
• Aura RGB header, Addressable Gen 2 headers, Clear CMOS header, front panel audio header, COM Port header, S/PDIF Out header, Speaker header, SPI TPM header, System Panel header.

Special Features:

• ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O).
• ASUS Q-Design (Q-DIMM, Q-Slot, Q-LED Core).
• ASUS Thermal Solution (Aluminum heatsink design).
• Aura Sync (Aura RGB header, Addressable Gen 2 RGB headers).

Software Features:

• ASUS Exclusive Software including Armoury Crate, AI Suite 3, ASUS CPU-Z, and more.
• UEFI BIOS with EZ DIY features like CrashFree BIOS 3 and EZ Flash 3.

BIOS:

• 128 Mb Flash ROM, UEFI AMI BIOS.

Manageability:

• Wake-On-LAN (WOL) by PME, PXE support.

Accessories:

• Includes SATA cables, I/O Shield, M.2 SSD screw package, and user guide.

Operating System Support:

• Windows 11 64-bit and Windows 10 64-bit.

Form Factor:

• Micro-ATX (mATX) Form Factor, measuring 9.6 inches x 8.3 inches (24.4 cm x 21.1 cm).
