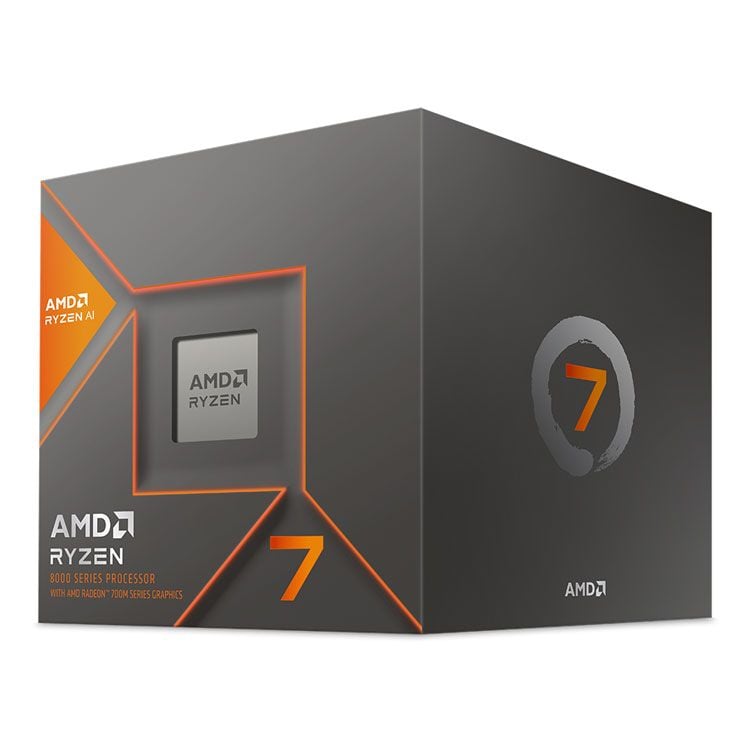

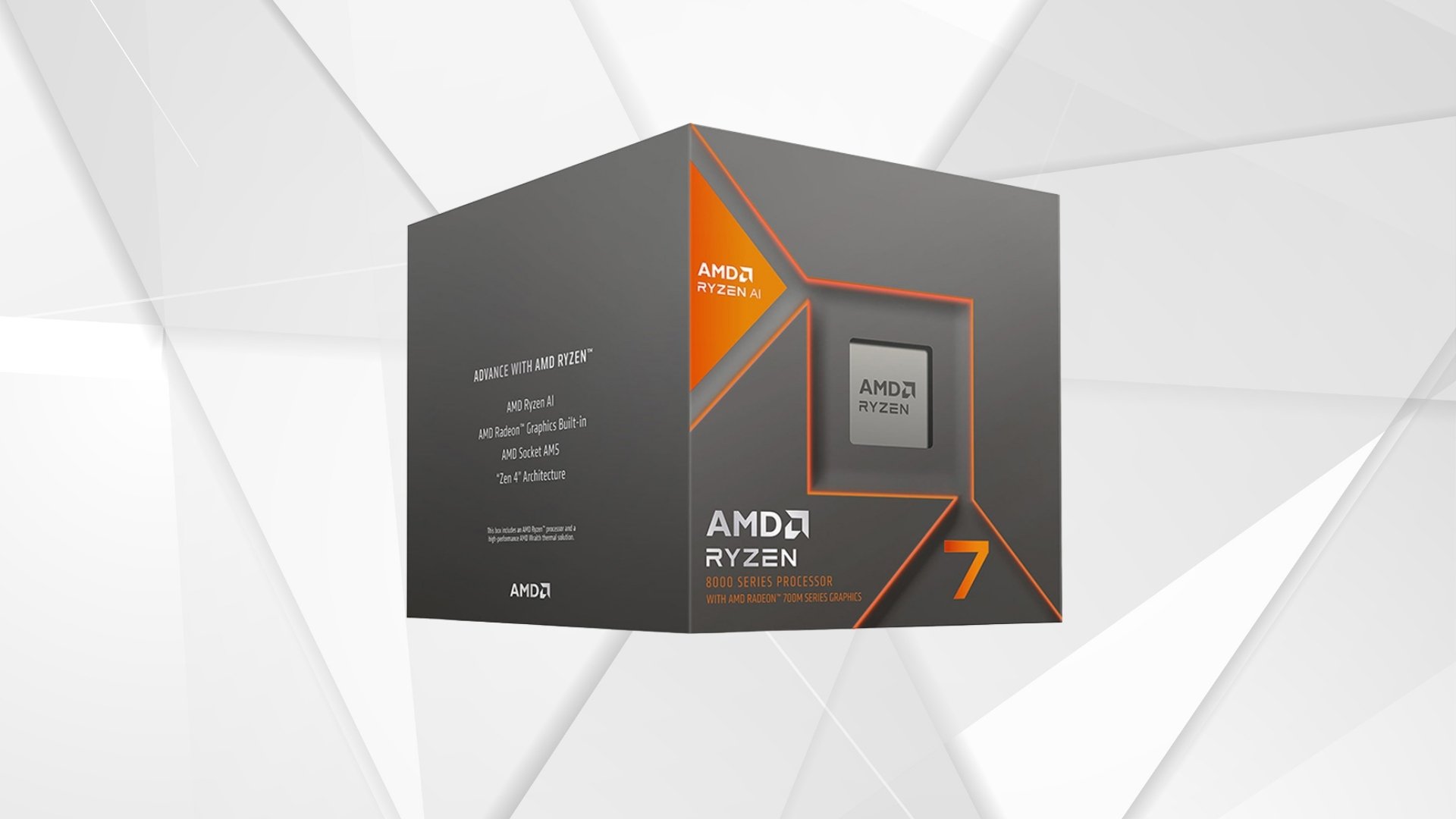

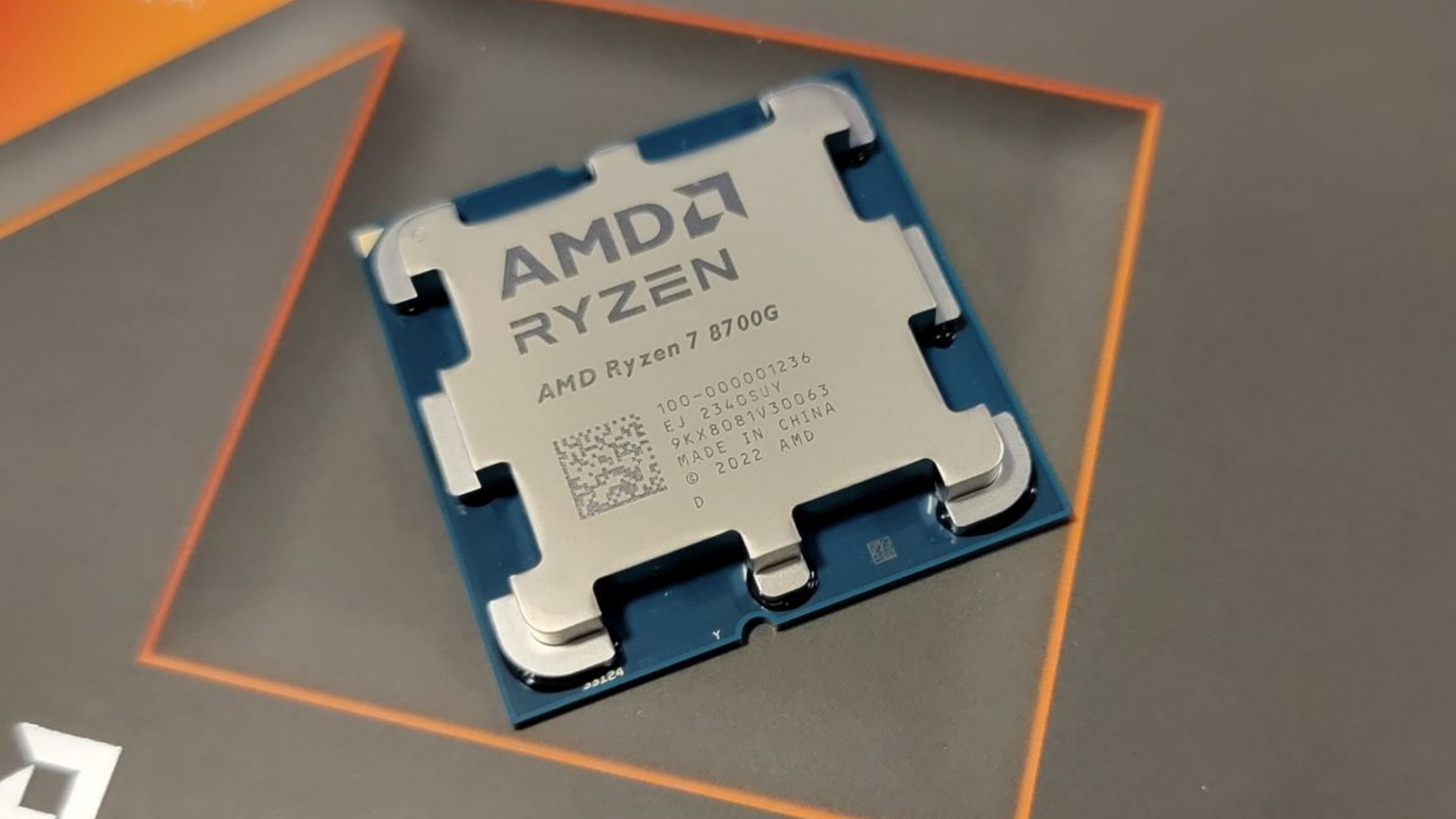

CPU AMD Ryzen 7 8700G | 4.2GHz up to 5.1 GHz, 8 Cores 16 Threads, AM5

Processor Specifications:

• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 7 8000 G-Series Desktop Processors with Radeon™ Graphics
• AMD PRO Technologies: No
• Consumer Use: Yes
• Regional Availability: Global
• Former Codename: “Phoenix”
• Architecture: “Zen 4”
• Number of CPU Cores: 8
• Multithreading (SMT): Yes
• Number of Threads: 16
• Max. Boost Clock: Up to 5.1GHz
• Base Clock: 4.2GHz
• L2 Cache: 8MB
• L3 Cache: 16MB
• Default TDP: 65W
• AMD Configurable TDP (cTDP): 45-65W
• Processor Technology for CPU Cores: TSMC 4nm FinFET
• CPU Compute Die (CCD) Size: 178mm²
• Package Die Count: 1
• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Max. Operating Temperature (Tjmax): 95°C
• Operating System Support: Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit (may vary by manufacturer)

Connectivity:

• Native USB 4 (40Gbps) Ports: 2
• Native USB 3.2 Gen 2 (10Gbps) Ports: 2
• Native USB 2.0 (480Mbps) Ports: 1
• PCI Express® Version: PCIe® 4.0
• Native PCIe® Lanes (Total/Usable): 20 / 16
• NVMe Support: Boot, RAID0, RAID1

Memory Specifications:

• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 256GB
• System Memory Subtype: UDIMM
• Max Memory Speed:
  • 2x1R DDR5-5200
  • 2x2R DDR5-5200
  • 4x1R DDR5-3600
  • 4x2R DDR5-3600

Graphics Capabilities:

• Integrated Graphics: Yes
• Graphics Model: AMD Radeon™ 780M
• Graphics Core Count: 12
• Graphics Frequency: 2900 MHz
• DirectX® Version: 12
• DisplayPort™ Version: 2.1
• HDMI® Version: 2.1
• HDCP Version Supported: 2.3
• USB Type-C® DisplayPort™ Alternate Mode: Yes
• Multi-Monitor Support: Yes
• Max Displays: 4
• AMD FreeSync™: Yes
• Wireless Display: Miracast

Video Encode and Decode Bandwidth:

• Max Video Encode Bandwidth: Various formats and resolutions supported
• Max Video Decode Bandwidth: Various formats and resolutions supported

AI Engine Capabilities:

• Brand Name: AMD Ryzen™ AI
• Available Performance: Up to 16 TOPS
