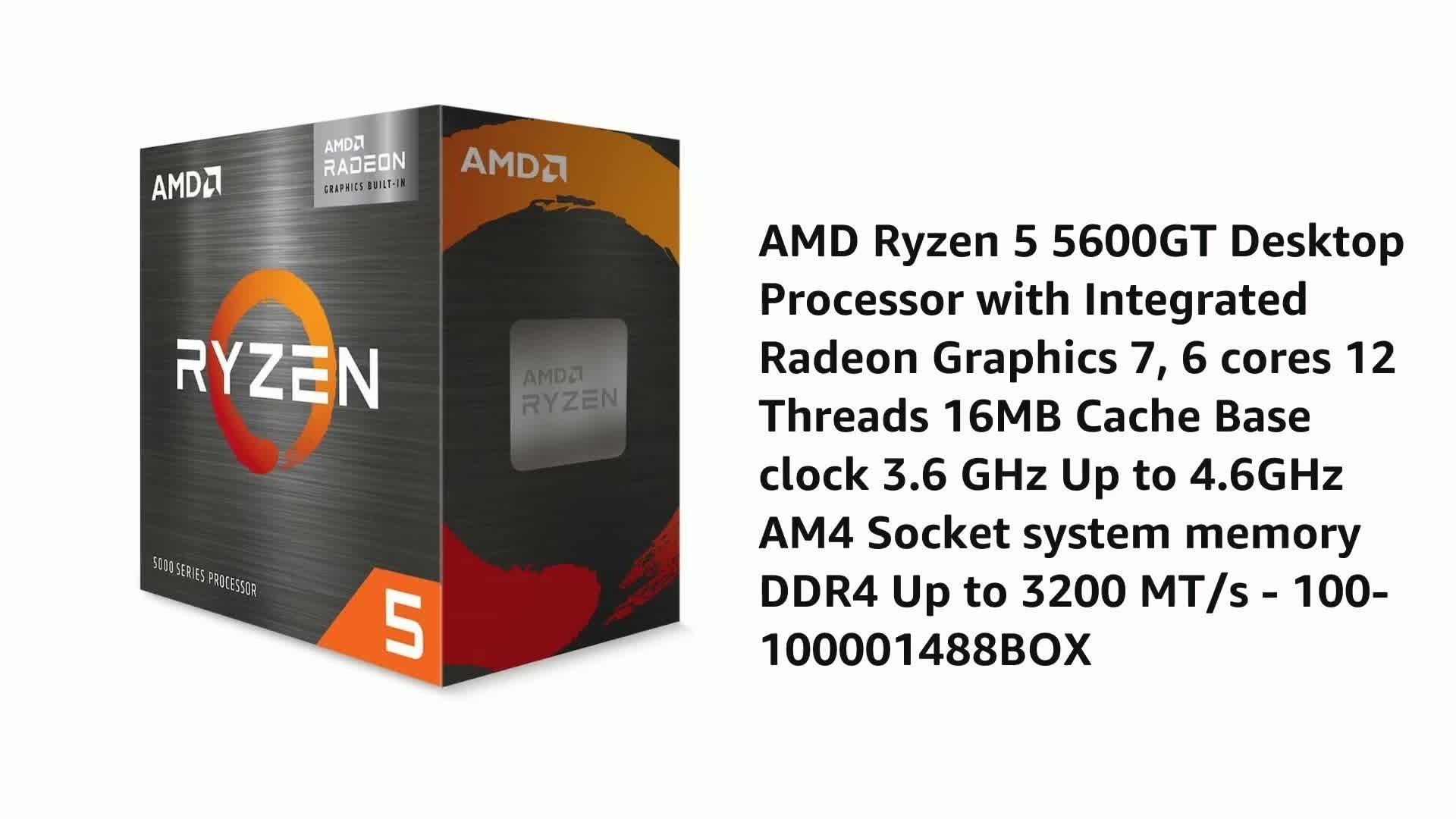

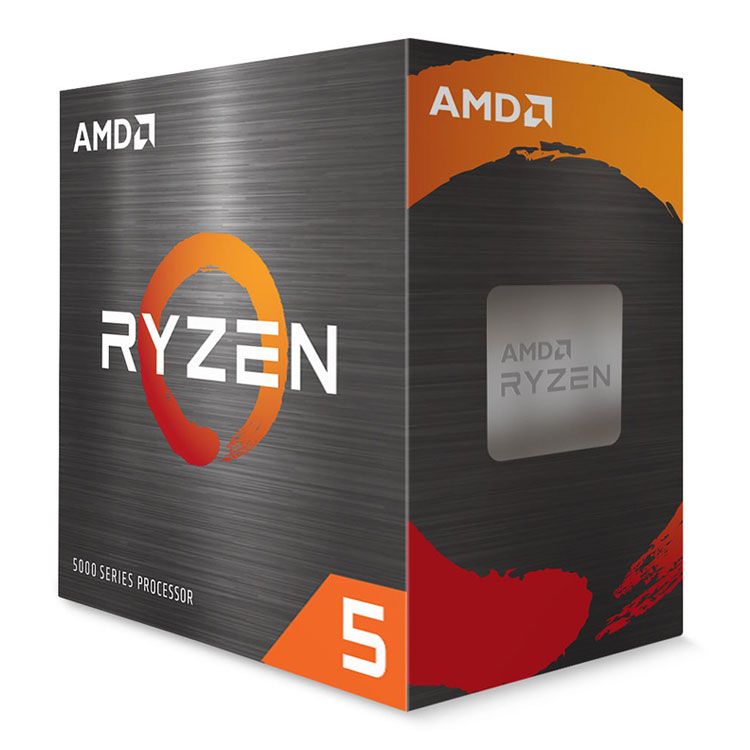

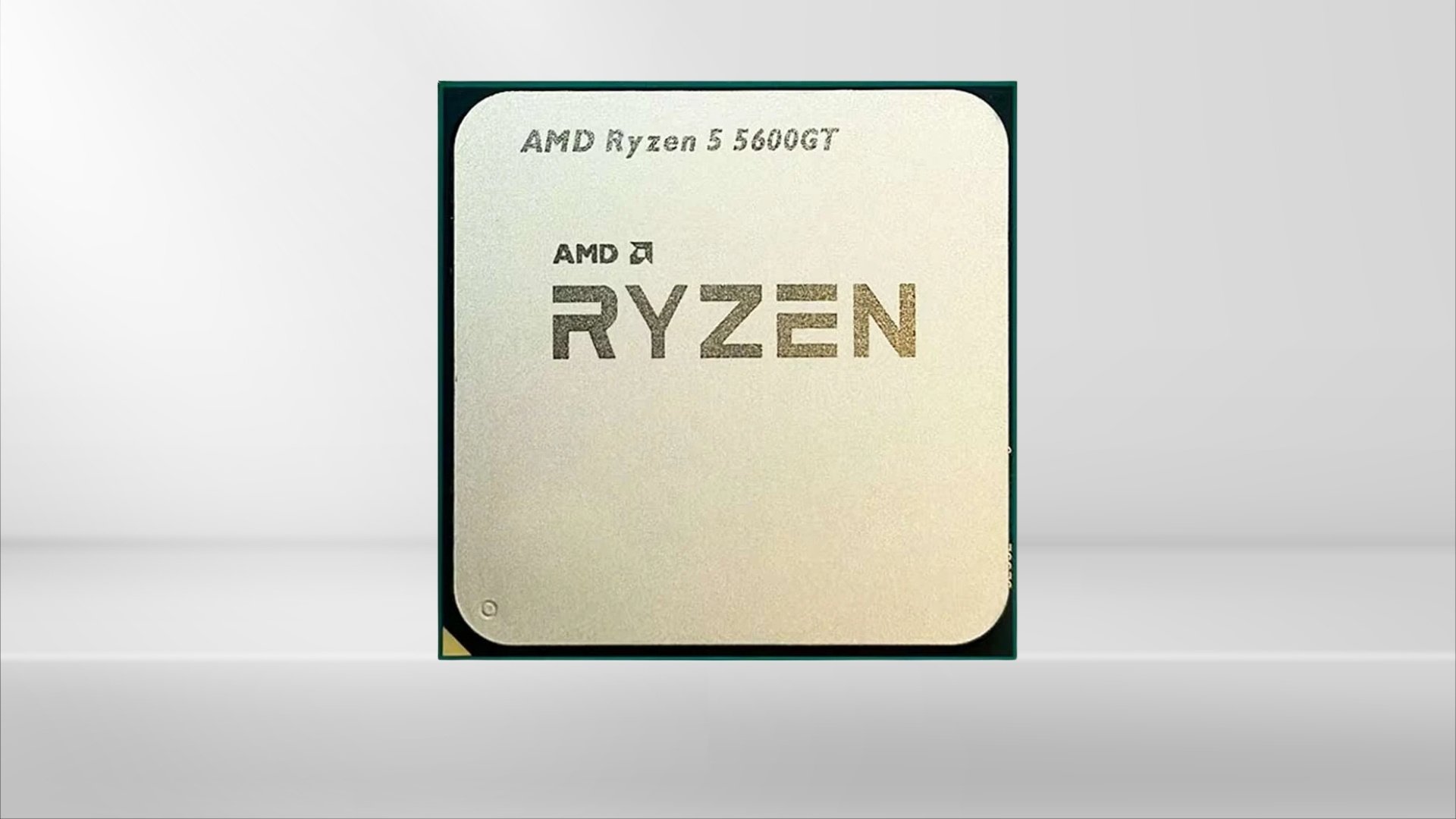

CPU AMD Ryzen 5 5600GT | 3.6 GHz up to 4.6 GHz, 6 Cores 12 Threads, AM4

General Specifications:

• Platform: Mainstream Desktop
• Market Segment: Consumer
• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics
• Commercial Use: No
• Regional Availability: Global, China, NA, EMEA, APJ, LATAM
• Former Codename: “Cezanne”
• Architecture: “Zen 3”
• # of CPU Cores: 6
• Multithreading (SMT): Yes
• # of Threads: 12
• Max. Boost Clock: Up to 4.6GHz
• Base Clock: 3.6GHz
• L1 Cache: 384KB
• L2 Cache: 3MB
• L3 Cache: 16MB
• Default TDP: 65W
• AMD Configurable TDP (cTDP): 45-65W
• Processor Technology for CPU Cores: TSMC 7nm FinFET
• CPU Compute Die (CCD) Size: 180mm²
• Package Die Count: 1
• Unlocked for Overclocking: Yes
• CPU Socket: AM4
• Thermal Solution (PIB): AMD Wraith Stealth
• Thermal Solution (MPK): AMD Wraith Stealth
• Max. Operating Temperature (Tjmax): 95°C
• Launch Date: 1/8/2024
• OS Support:
  • Windows 11 – 64-Bit Edition
  • Windows 10 – 64-Bit Edition
  • RHEL x86 64-Bit
  • Ubuntu x86 64-Bit (Operating System support may vary by manufacturer.)

Connectivity:

• PCI Express® Version: PCIe® 3.0
• NVMe Support: Boot, RAID0, RAID1, RAID10

Memory Specifications:

• System Memory Type: DDR4
• Memory Channels: 2
• Max. Memory: 128GB
• System Memory Subtype: UDIMM
• System Memory Specification: Up to 3200MT/s
• Max Memory Speed:
  • 2x1R DDR4-3200
  • 2x2R DDR4-3200
  • 4x1R DDR4-2933
  • 4x2R DDR4-2667

Graphics Capabilities:

• Integrated Graphics: Yes
• Graphics Model: Radeon™ Graphics
• Graphics Core Count: 7
• Graphics Frequency: 1900 MHz
