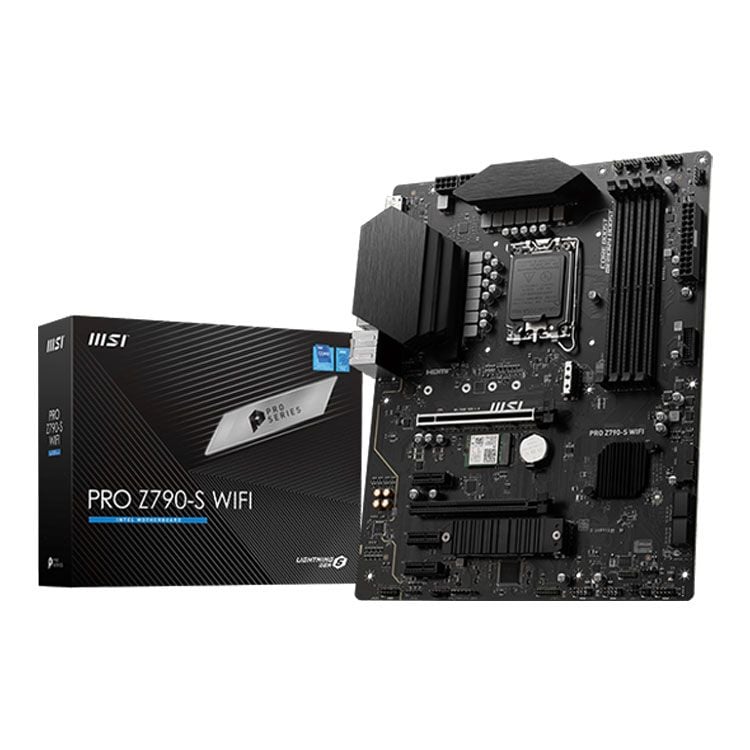

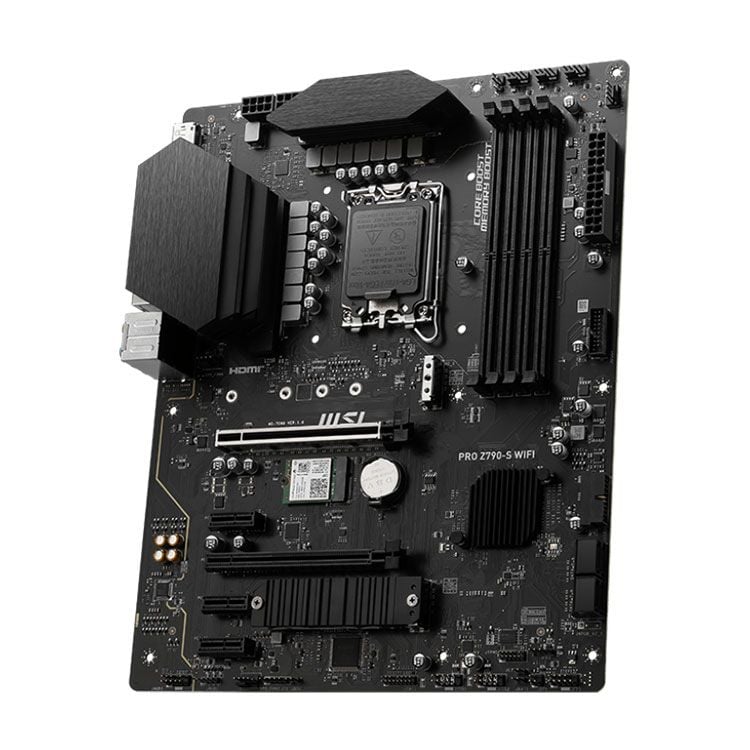

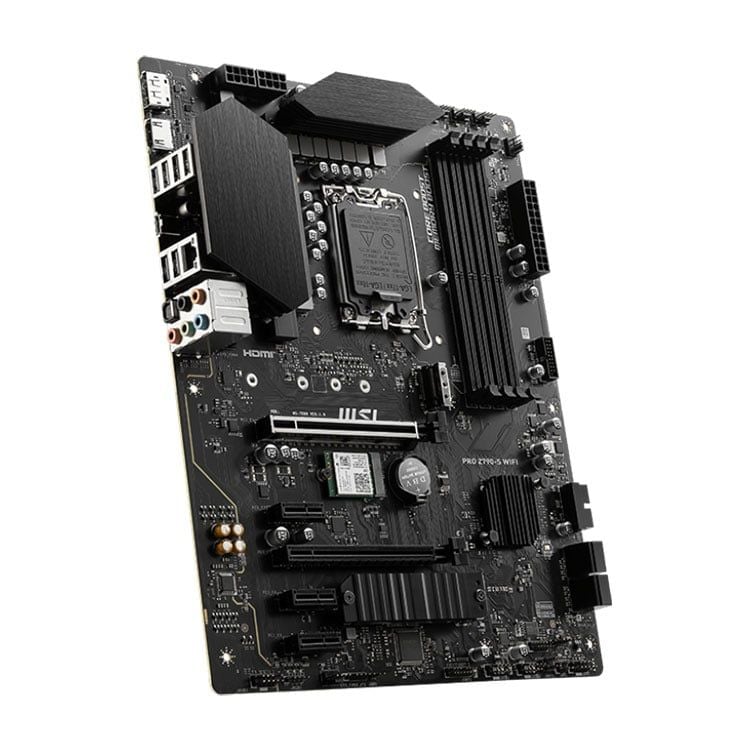

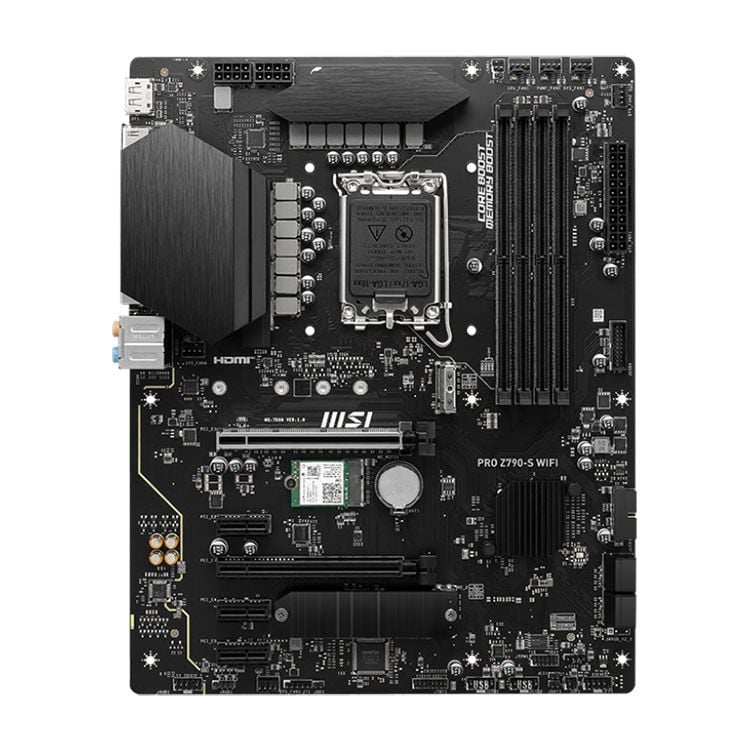

Mainboard MSI PRO Z790-S WIFI | Intel Z790, ATX, 4 khe DDR5

4.988.000₫

⚙ THÔNG SỐ CƠ BẢN:

Chipset: Intel Z790
Socket: LGA 1700
Form: ATX
Memory: 4 khe DDR5

Mã: M.MSI.Z790.S.WF.6E.D5 Danh mục: CPU, Mainboard, VGA, MAINBOARD & RAM - CAO CẤP, Mainboard Intel, Mainboard Z, Mainboard Z790 cao cấp

Mô tả

MÔ TẢ SẢN PHẨM

BẢNG THÔNG SỐ CHI TIẾT:

CHIPSET	INTEL Z790
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
	LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB
	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
	Max. overclocking frequency:
	• 1DPC 1R Max speed up to 6600+ MHz
	• 1DPC 2R Max speed up to 6400+ MHz
	• 2DPC 1R Max speed up to 6000+ MHz
	• 2DPC 2R Max speed up to 5600+ MHz
	Supports Intel® XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS	1x HDMI™
	Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
	1x DisplayPort
	Support DP 1.4, maximum resolution of 4K 60Hz*
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	2x PCI-E x16 slot
	3x PCI-E x1 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
	PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE	2x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SAT

Thông số kỹ thuật

Mainboard MSI PRO Z790-S WIFI | Intel Z790, ATX, 4 khe DDR5
