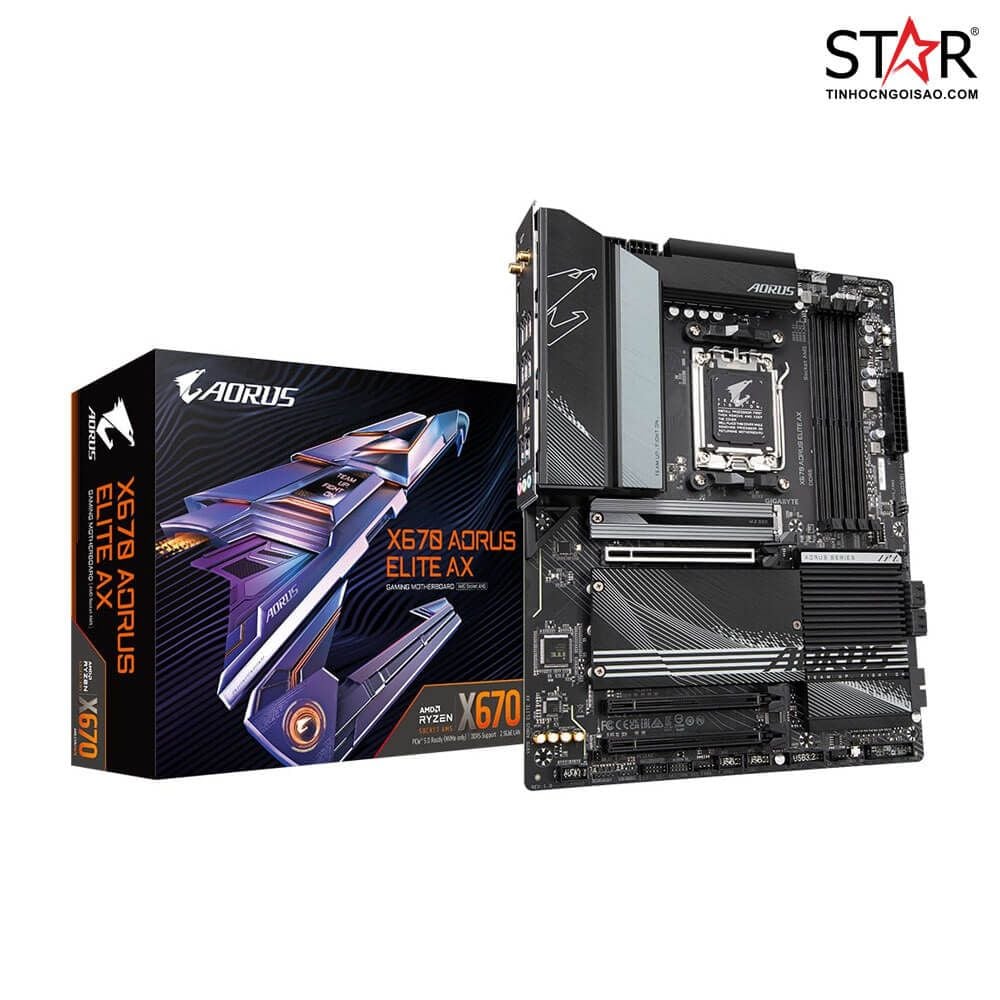

Mainboard Gigabyte X670 Aorus Elite AX

8.188.000₫

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	X670 AORUS ELITE AX
CPU hỗ trợ	AMD
Chipset	AMD X670
RAM hỗ trợ	4 x DIMM, Max. 128GB Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Khe cắm mở rộng	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0^(Note) x4/x2 SSD support) (M2A_CPU) (Note) Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 4 x SATA 6Gb/s connectors
USB	CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 2 x USB Type-C^® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header) 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C^® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 6 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm

Mã: M.GG.X670.AR.EL.AX Danh mục: CPU, Mainboard, VGA, Mainboard AMD ❯, Mainboard X

Mô tả
Đánh giá (0)

MÔ TẢ SẢN PHẨM

Cung cấp hiệu năng tối ưu

Đóng vai trò là bộ khung của toàn bộ linh kiện PC, GIGABYTE X670 AORUS ELITE AX sẽ đảm bảo sức mạnh cho toàn bộ dàn PC của bạn bằng thiết kế 16+2+2 phase điện. Chiếc mainboard cao cấp từ GIGABYTE cung cấp năng lượng tuyệt vời nhất cho nhu cầu ép xung tối đa từ người dùng.
