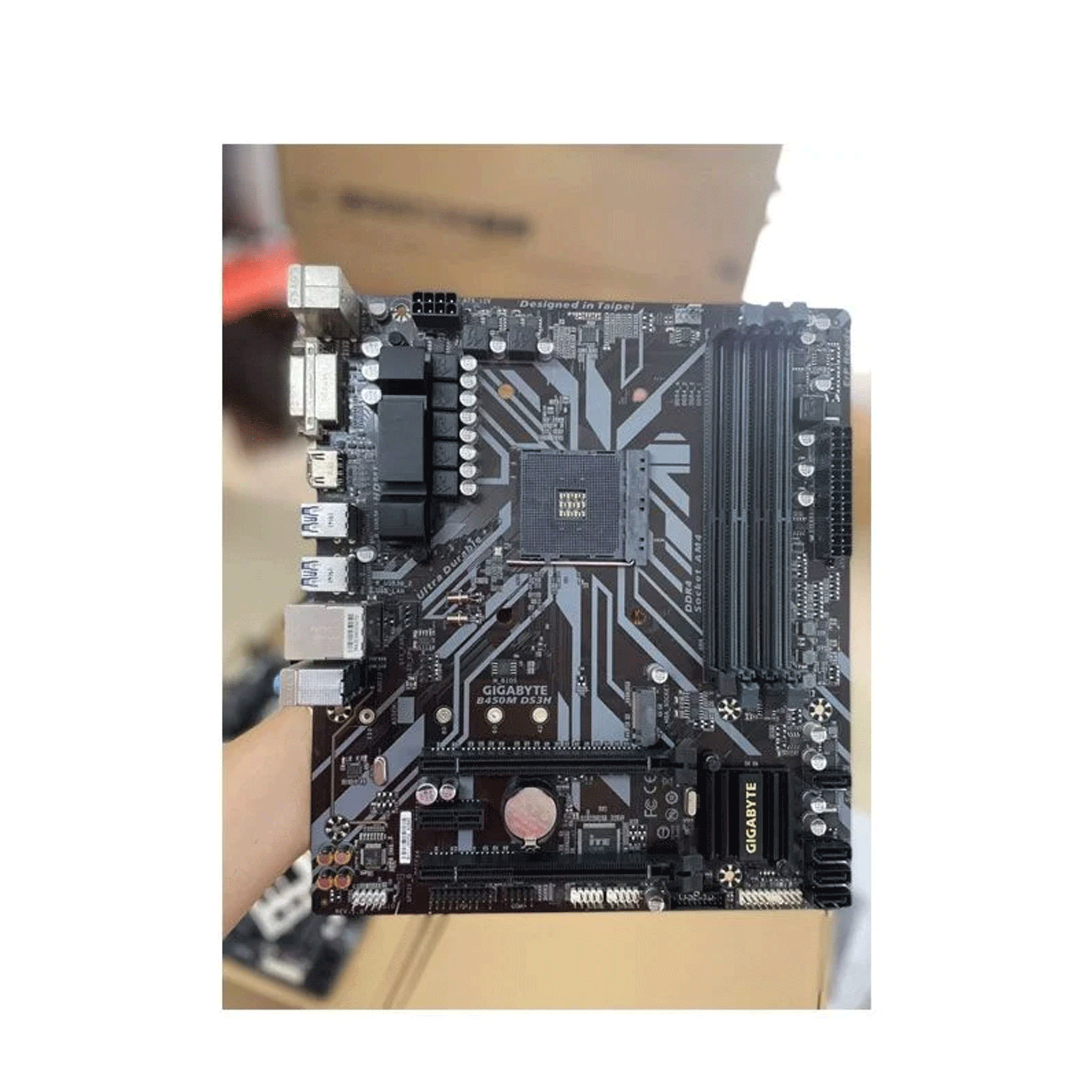

Mainboard Gigabyte B450M DS3H QSD

954.000₫

Chuẩn mainboard:	Micro-ATX
Socket: AM4 , Chipset:	B450
Hỗ trợ RAM:	DDR4 , tối đa 64GB

Mã: M.GG.B450M.DS3H.CU Danh mục: AMD AM4, B450, Linh Kiện Cũ, Main B, Mainboard AMD, Theo socket

Mô tả
Đánh giá (0)

MÔ TẢ SẢN PHẨM

THÔNG SỐ KỸ THUẬT

Chíp xử lý	AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
Bộ nhớ Ram	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Loại Ram	4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset	AMD B450
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Giao tiếp	Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel
Cổng I/O phía sau	1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Cổng I/O ở trong	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Kết nối mạng LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Âm thanh	Realtek® ALC887 codec High Definition Audio
Hệ điều hành hỗ trợ	Support for Windows 10 64-bit Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
Kích thước	Micro ATX Form Factor; 24.4cm x 21.5cm
Bảo hành	03 tháng
Hãng sản xuất	Gigabyte
