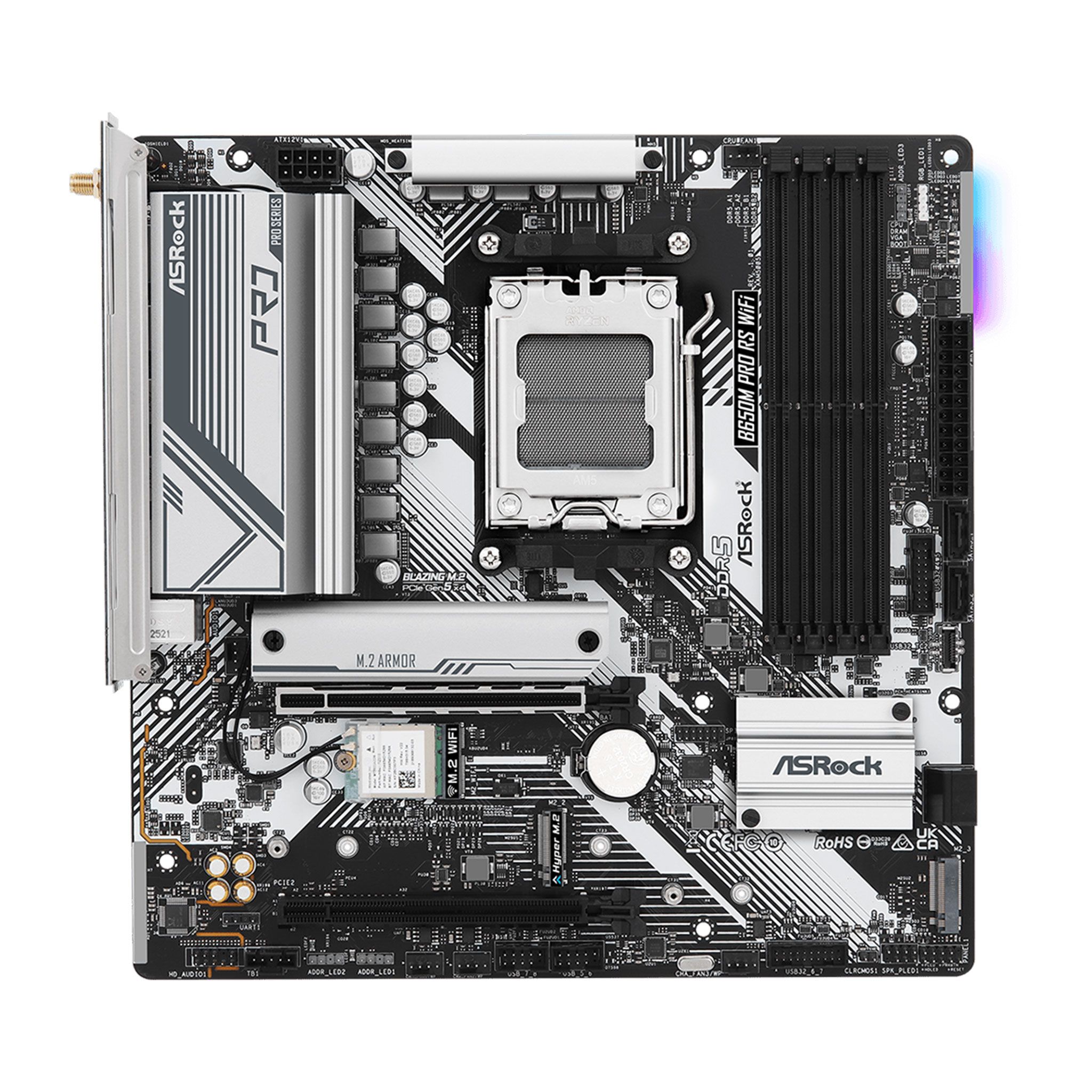

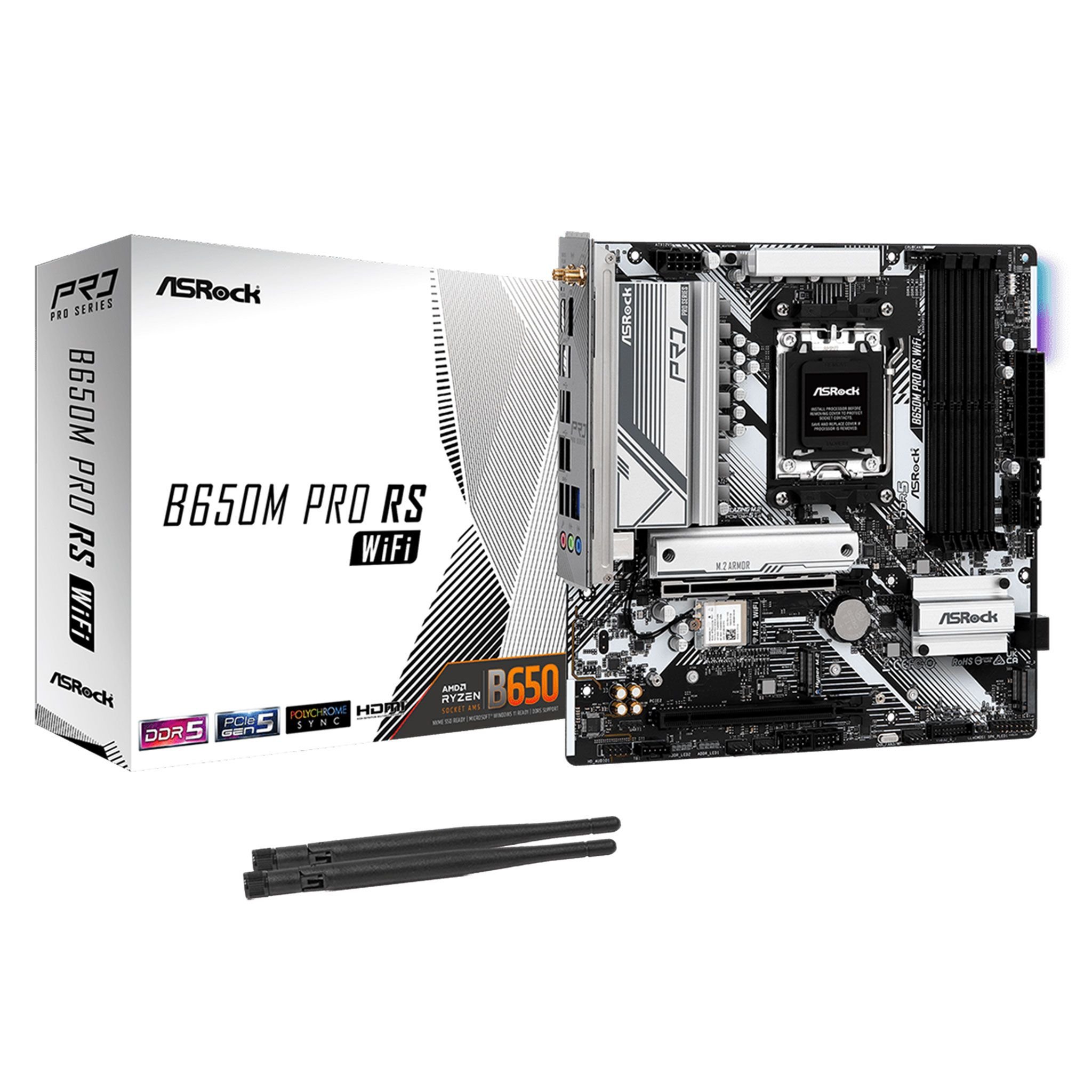

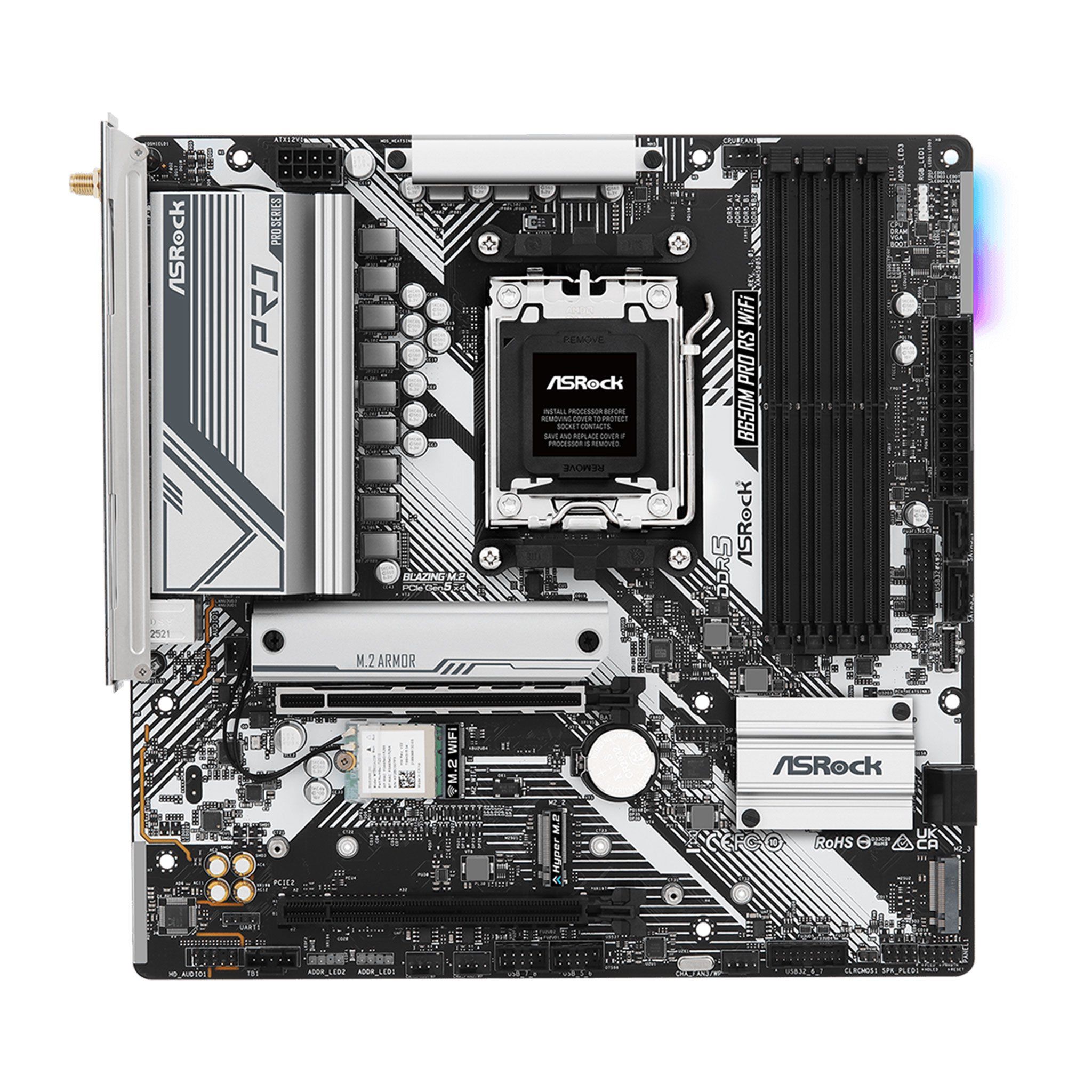

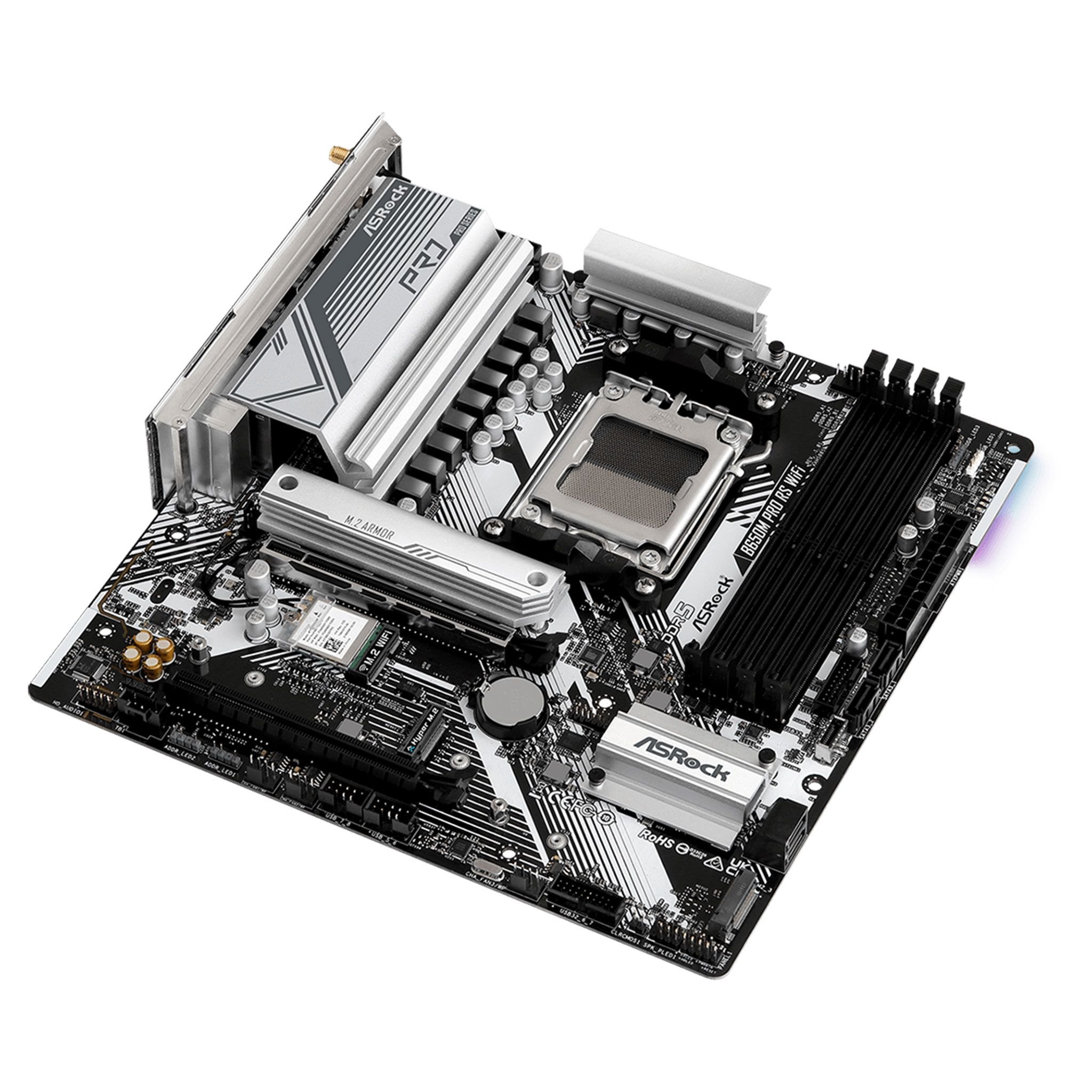

Mainboard ASRock B650M Pro RS Wifi
3.679.000₫
⚙ THÔNG SỐ CƠ BẢN:
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 7200+ MHz (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
- 1 Hyper M.2 (PCIe Gen4 x4)
- 1 M.2 (PCIe Gen4 x2)
- 1 USB 3.2 Gen2 Type A+C (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- Dragon 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
MÔ TẢ SẢN PHẨM
BẢNG THÔNG SỐ CHI TIẾT:
| Superb Productivity | – PCIe Gen5 (M.2) |
| – Dual Channel DDR5 | |
| Rock-Solid Durability | – 8+2+1 Power Phase, 50A Dr.MOS |
| – Pre-Installed I/O Shield | |
| Ultrafast Connectivity | – 2.5G LAN, 802.11ax Wi-Fi 6E Module |
| EZ Update | – BIOS Flashback Button |
| – ASRock Auto Driver Installer | |
| EZ Troubleshooter | – ASRock Post Status Checker |
| CPU Support | – Supports AMD Socket AM5 Ryzen™ 7000 Series |
| Processors | |
| Chipset | – AMD B650 |
| Memory | – Dual Channel DDR5 Memory Technology |
| – 4 x DDR5 DIMM Slots | |
| – Supports DDR5 ECC/non-ECC, un-buffered memory | |
| up to 7200+(OC)* | |
| – Max. capacity of system memory: 192GB | |
| – Supports XMP and EXPO memory modules | |
| BIOS | – 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | – Integrated AMD RDNA™ 2 graphics |
| – HDMI 2.1 and DisplayPort 1.4 support | |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| – Nahimic Audio | |
| LAN | – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| – Dragon RTL8125BG | |
| – Supports Dragon 2.5G LAN Software | |
| – Smart Auto Adjust Bandwidth Control | |
| – Visual User-Friendly UI | |
| – Optimized Default Setting for Game, Browser, | |
| and Streaming Modes | |
| – User Customized Priority Control | |
| Wireless LAN | – 802.11ax Wi-Fi 6E Module |
| – Supports Dual-Band 2×2 with extended 6GHz band | |
| support | |
| – Bluetooth 5.2 + High-speed class II support | |
| – Supports MU-MIMO | |
| Expansion Slots | – 1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode |
| – 1 x PCIe 3.0 x16 Slot (PCIE2) supports x4 mode | |
| – 1 x M.2 Socket (Key E) for WiFi/BT PCIe module | |
| – Supports AMD CrossFire™ | |
| – 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage | – Blazing M.2 Socket (M2_1) supports PCIe Gen5x4 |
| (128 Gb/s) mode* | |
| – Hyper M.2 Socket (M2_2) supports PCIe Gen4x4 | |
| (64 Gb/s) mode* | |
| – M.2 Socket (M2_3) supports PCIe Gen4x2 (32 Gb/s) | |
| – 4 x SATA3 6.0 Gb/s Connectors | |
| – Supports RAID 0, RAID 1, RAID 10 for SATA and | |
| M.2 NVMe storage devices* | |
| USB Ports | – 1 x USB 3.2 Gen2 Type-C (Rear) |
| – 1 x USB 3.2 Gen2 Type-A (Rear) | |
| – 1 x USB 3.2 Gen1 Type-C (Front) | |
| – 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) | |
| – 8 x USB 2.0 (4 Rear, 4 Front) | |
| Connectors | – SPI TPM Header |
| – Power LED and Speaker Header | |
| – RGB LED Header* | |
| – Addressable LED Headers** | |
| – Various fan connectors with Smart Fan Speed | |
| Control*** | |
| – ATX Power and 12V Power Connectors | |
| – Thunderbolt™ AIC Connector (5-pin) | |
| – USB Headers for 2.0 and 3.2 Gen1 | |
| – Front Panel Type C USB 3.2 Gen1 Header | |
| Rear I/O Ports | – Antenna Ports (2x) |
| – HDMI Port | |
| – DisplayPort 1.4 | |
| – USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| – USB 3.2 Gen2 Type-C Port (10 Gb/s) | |
| – USB 3.2 Gen1 Ports (2x) | |
| – USB 2.0 Ports (4x) | |
| – RJ-45 LAN Port | |
| – BIOS Flashback Button | |
| – HD Audio Jacks: Line in/Front Speaker/Microphone | |
| Software and UEFI | – ASRock Motherboard Utility (A-Tuning) |
| – ASRock Dragon 2.5G LAN Software | |
| – ASRock Polychrome SYNC* | |
| – ASRock Full HD UEFI | |
| – ASRock Auto Driver Installer | |
| – ASRock Instant Flash | |
| Accessories | – User Manual |
| – SATA Data Cables (2x) | |
| – ASRock WiFi Antennas (2.4/5/6 GHz) (2x) | |
| – Screws for M.2 Sockets (3x) | |
| – Standoff for M.2 Socket | |
| Form Factor | – Micro ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm) |
| Operating System | – Microsoft® Windows® |
