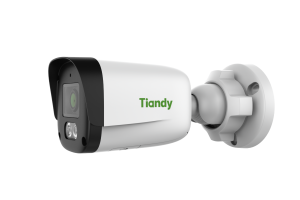

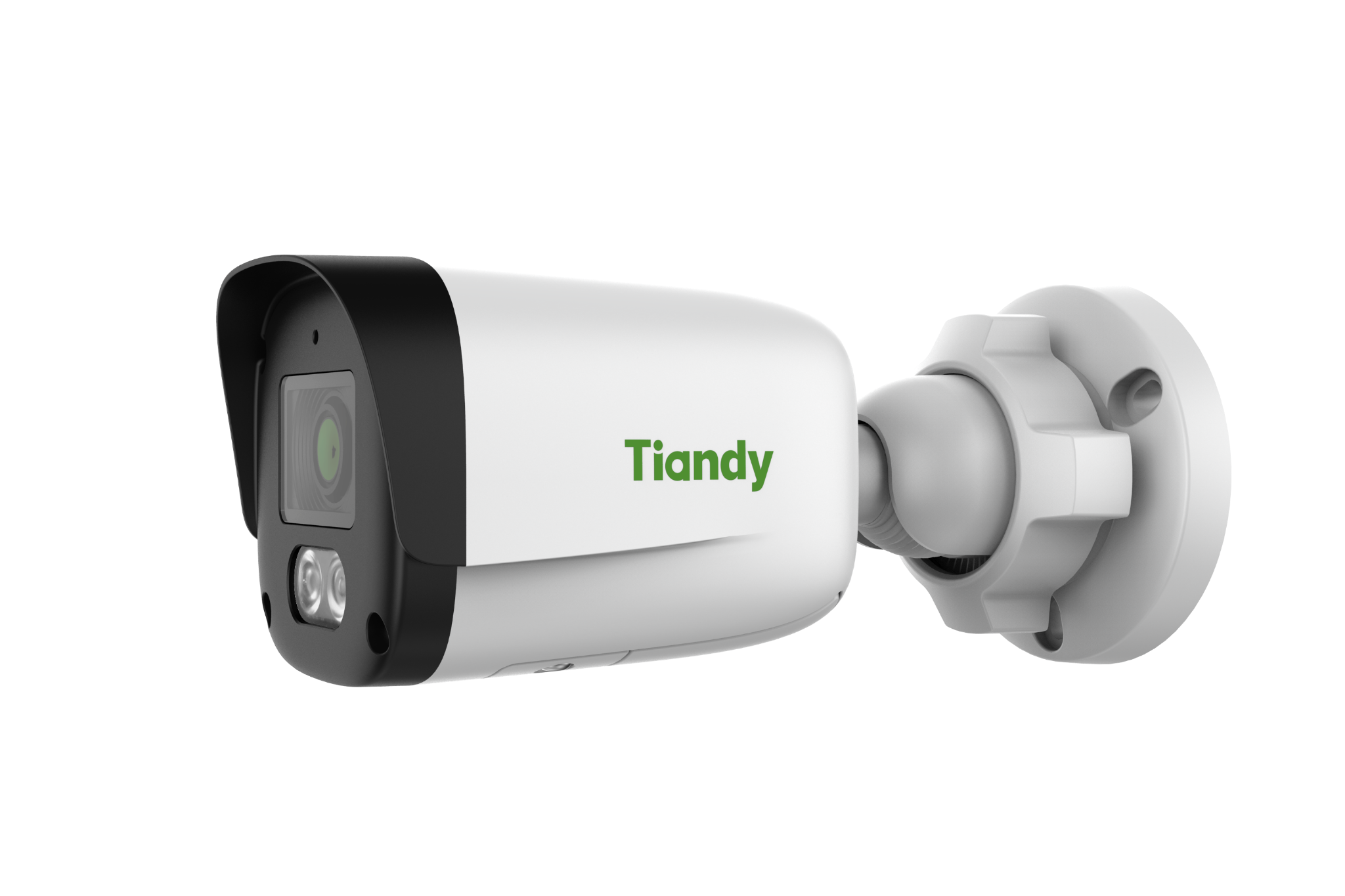

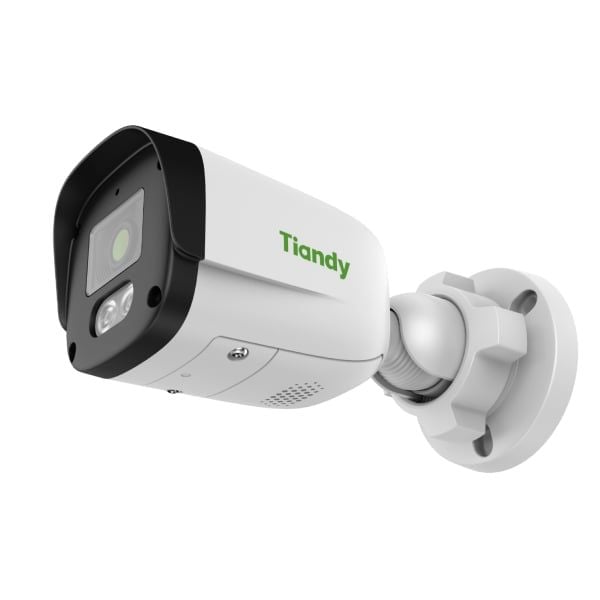

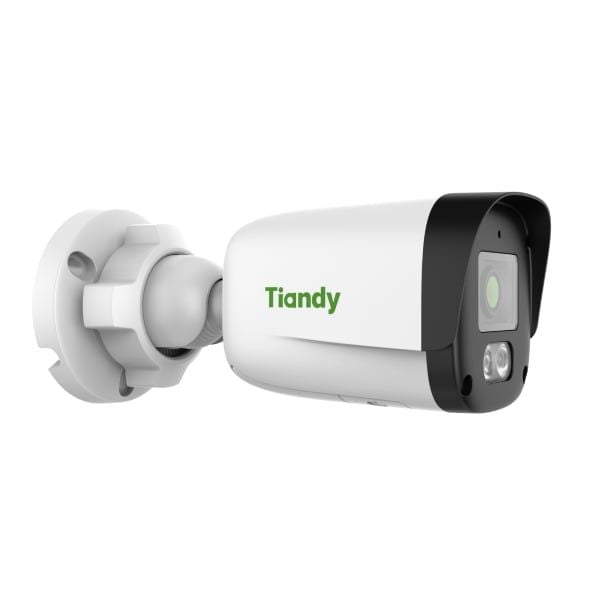

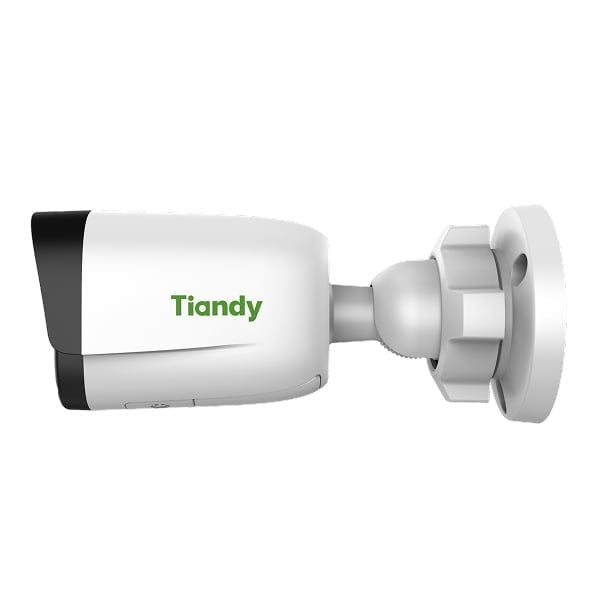

Camera WiFi Ngoài Trời 4MP Tiandy TC-C34QN
789.000₫
- Vỏ: Kim loại + nhựa
- Độ phân giải tối đa: 4MP, 2560×1440 @20fps
- Chuẩn nén: S+265 / H.265 / H.264B / H.264M / H.264H
- Độ nhạy sáng: Màu: 0.02 Lux @(F2.0, AGC ON), Đen/Trắng: 0 Lux với hồng ngoại (IR)
- Tầm xa hồng ngoại: Lên đến 50m
- Tích hợp: Mic và loa
- Hỗ trợ thẻ nhớ: microSD / microSDHC / microSDXC, dung lượng tối đa 512GB
- Điều kiện hoạt động: -30℃ ~ 60℃ (-22℉ ~ 140℉), độ ẩm ≤95%RH
- Nguồn cấp: DC 12V ±25%, công suất tối đa 7.5W
- Chuẩn bảo vệ: IP67
| Camera | |
| Image Sensor | 1/2.8″CMOS |
| Min. Illumination |
Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night |
IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >40dB |
| Angle Adjustment |
0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View |
86(H); 45.2(V); 99.1(D) |
| DORI Distance |
Detect:65.31m Observe:25.92m Recognize:13.06m Identify:6.53m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | Up to 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 15m |
|
Compression Standard |
|
| Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
| Image | |
| Max. Resolution |
4MP,2560×1440@20fps |
| Main Stream |
PAL:20fps(2560×1440, 2304×1296, 1920×1080, 1280×720, 704×576, 640×480) NTSC:20fps(2560×1440, 2304×1296, 1920×1080, 1280×720, 704×576, 640×480) |
| Sub Stream |
PAL:20fps(704×576, 704×288, 352×288, 640×360) NTSC:20fps(704×480, 704×240, 352×240, 640×360) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 |
| Privacy Mask |
4 black static areas |
| Defog | Yes |
| Feature | |
| Exceptions Alarm |
Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict |
| Linkage Method |
Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output |
| Network | |
| ANR | Yes |
| Protocols |
HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast; FTP |
| System Compatibility |
ONVIF(Profile S/T) ; SDK; CGI; RTSP |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Moblie Client | EasyLive Plus |
| Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Wi-Fi | |
| Transmission Distance |
Up tp 50m( based on actual environment) |
| Wireless Standard |
IEEE802.11b/ 802.11g/802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security |
WPA-PSK/WPA2-PSK |
| Interface | |
| Communication Interface |
1*RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Reset Button | Yes |
| On-board Storage |
Support microSD/microSDHC/microSDXC card,up to 512GB |
| General | |
| Web Client Language |
3 languages Simple Chinese/English/Vietnamese |
| Operating Temperature |
-30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature |
-30℃~60℃(-22℉~140℉) |
| Storage Humidity |
10%~95%RH(non-condensing) |
| Power Supply |
DC12V±25%,Max. 7.5W |
| Protection |
Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions |
164(L)73(W)73(H)mm |
| Package Dimensions |
215(L)95(W)120(H)mm |
| GrossWeight | 0.46kg |
