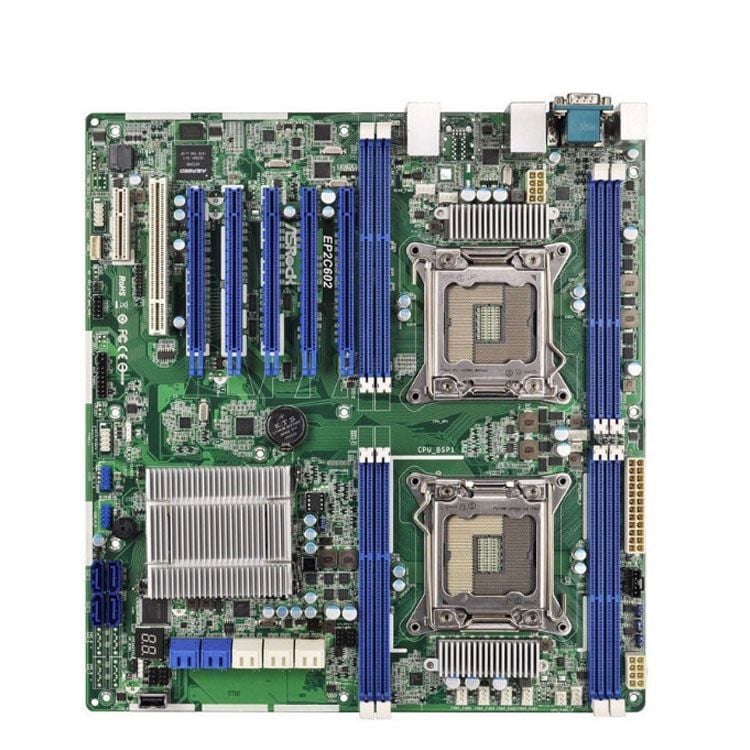

Mainboard ASRock EP2C602 DDR3 Cũ | LGA 2011, SSI-EEB (Server), 8 khe RAM

SSI EEB

12'' x 13'' (30.5 cm x 33 cm)

Intel® Xeon® processor E5-1600/2600/4600 & v2 series - Supports Hyper-Threading Technology
Intel Xeon E5-1600 hỗ trợ trên 1 socket

Dual Socket R (LGA2011)

6 +1 Power Phase Design

Intel® C602

8x 240-pin DDR3 DIMM slots - Support up to 256GB DDR3 R/LR DIMM ; 64GB ECC/non-ECC unbuffered UDIMM

Quad Channel DDR3 - Hỗ trợ DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM

1.5V, 1.35V

5 slots - 3 x PCIE3/PCIE6/PCIE7 : x16 mode - 1 x PCIE4: x8/x0 mode - 1 x PCIE5: x16/x8 mode

1 slot

1 slot

Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage 3.0, NCQ, AHCI and "Hot Plug" functions

Marvell SE9230: 4 x SATA3 6.0 Gb/s, hỗ trợ RAID 0, 1, 10, NCQ, AHCI and "Hot Plug" functions

Gigabit LAN 10/100/1000 Mb/s

2 x Intel® 82574L - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function* - Supports PXE
* Intel® 82574L discontinues official driver support for Microsoft® Windows® 2012 R2 (x64)

ASPEED AST2300

1 x Realtek RTL8211E for dedicated management LAN

Watch Dog - NMI

ASPEED AST2300

DDR3 16MB

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

2

1 x D-Sub

2

2 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED)

1 (COM1)

1 (COM2)

1 (includes chassis intrusion, location button & LED, front LAN LED)

1

1

1

1

8 (8 x 4-pin or 6 x 4-pin, 2 x 3-pin)
*CPU fan headers have 3-pin and 4-pin ones. Two types couldn't be used at the same time.

1 (24-pin) + 2 (8-pin)

2 (each support 2 USB 2.0)

1

1

1

1

64Mb AMI UEFI Legal BIOS

Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment - ASRock Instant Flash

CPU Temperature Sensing - System Temperature Sensing

CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control

Voltage Monitoring: CPU1/2, DRAM1/2, VTT1/2, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB

Microsoft® Windows® - Server 2008 R2 (x64) - Server 2012 (x64) - Server 2012 R2 (x64) Linux - RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64) - CentOS 5.5 / 6.4 (x32 and x64) - SUSE Enterprise Linux Server 11 SP1 (x32 and x64) - FreeBSD 9.1 (x32/x64) - Fedora core 18 (x64) - Ubuntu 12.04/12.10 (x64) Virtual - VMWare® ESXi 5.1 (Marvell SE9230 và Marvell SE9172 không có driver hỗ trợ VMWare)
