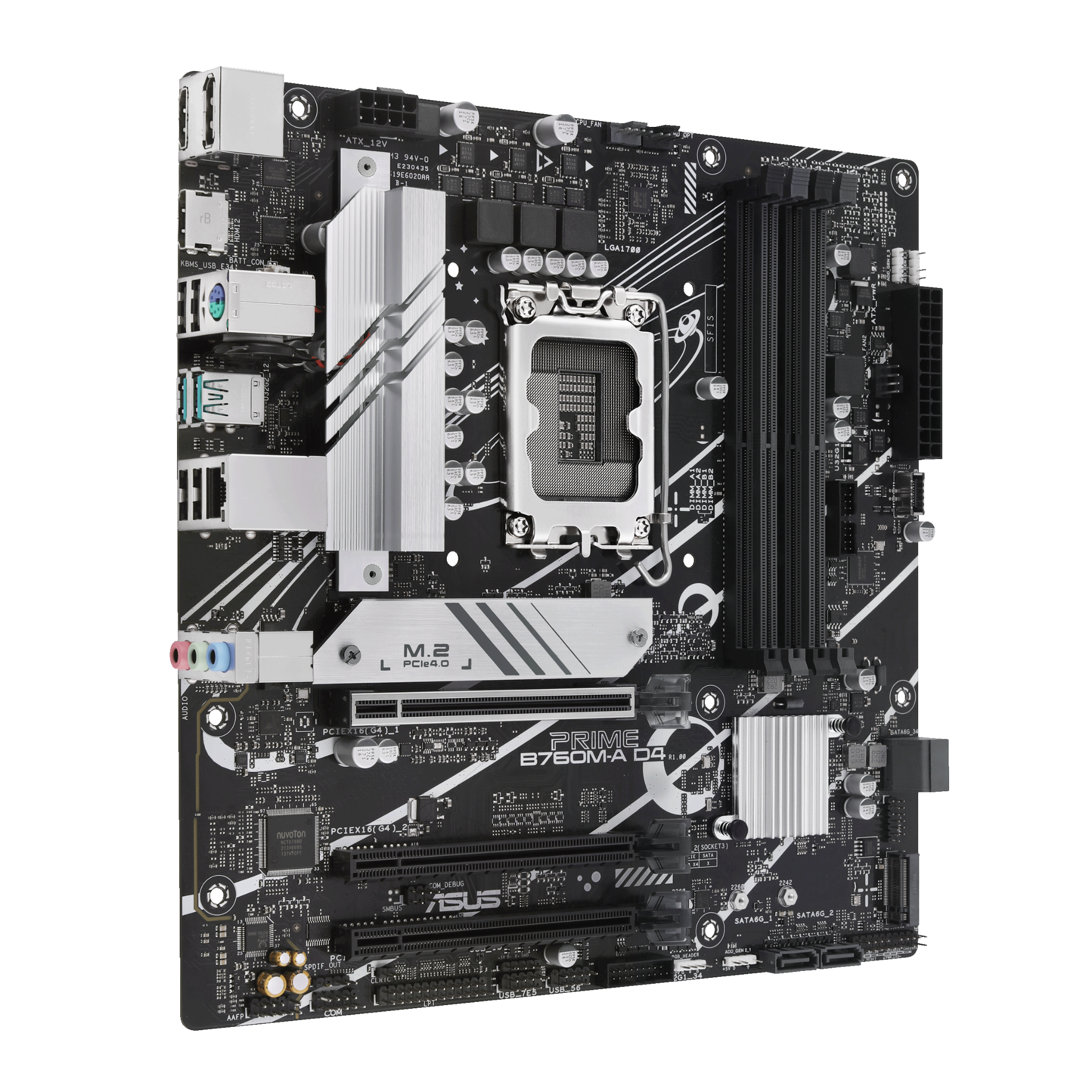

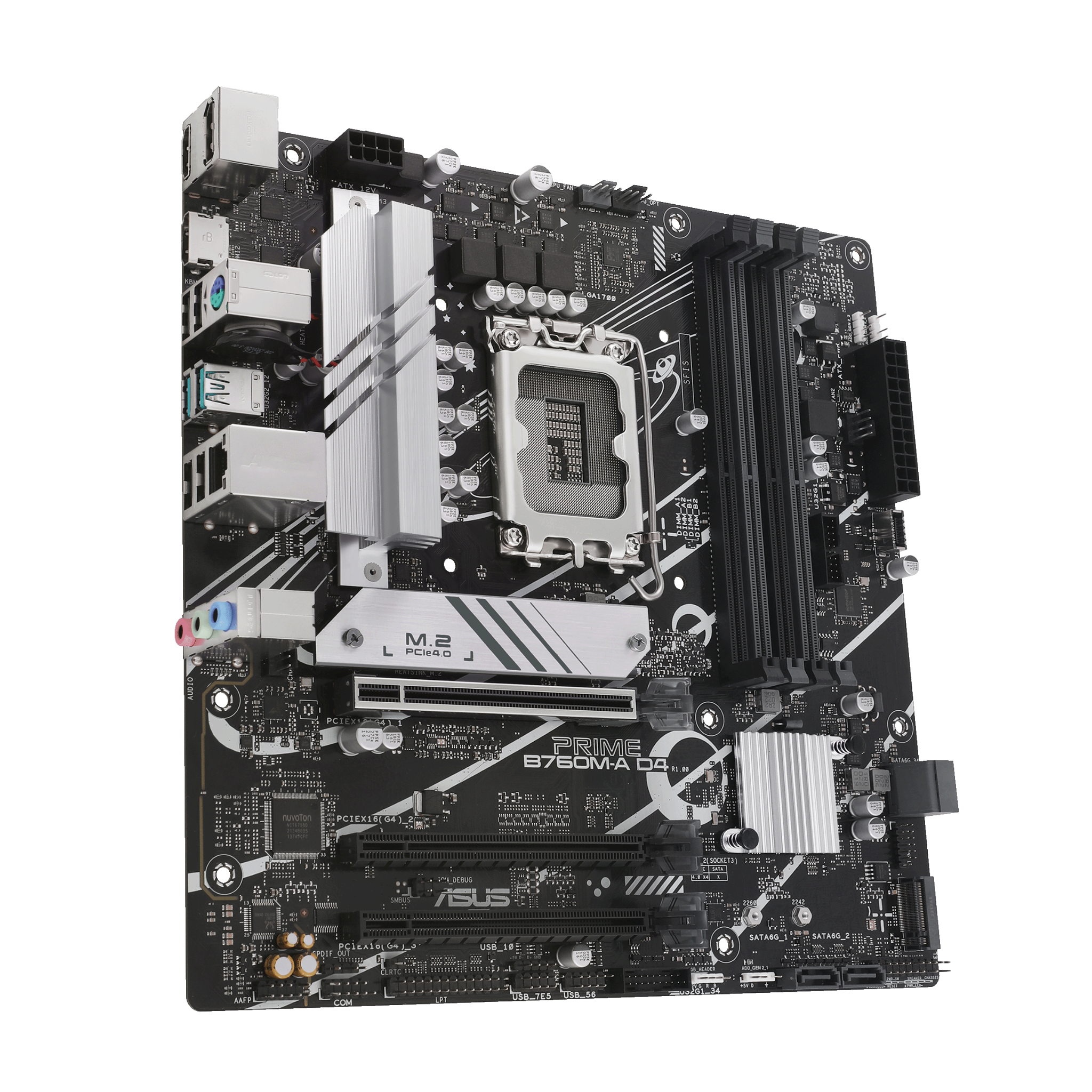

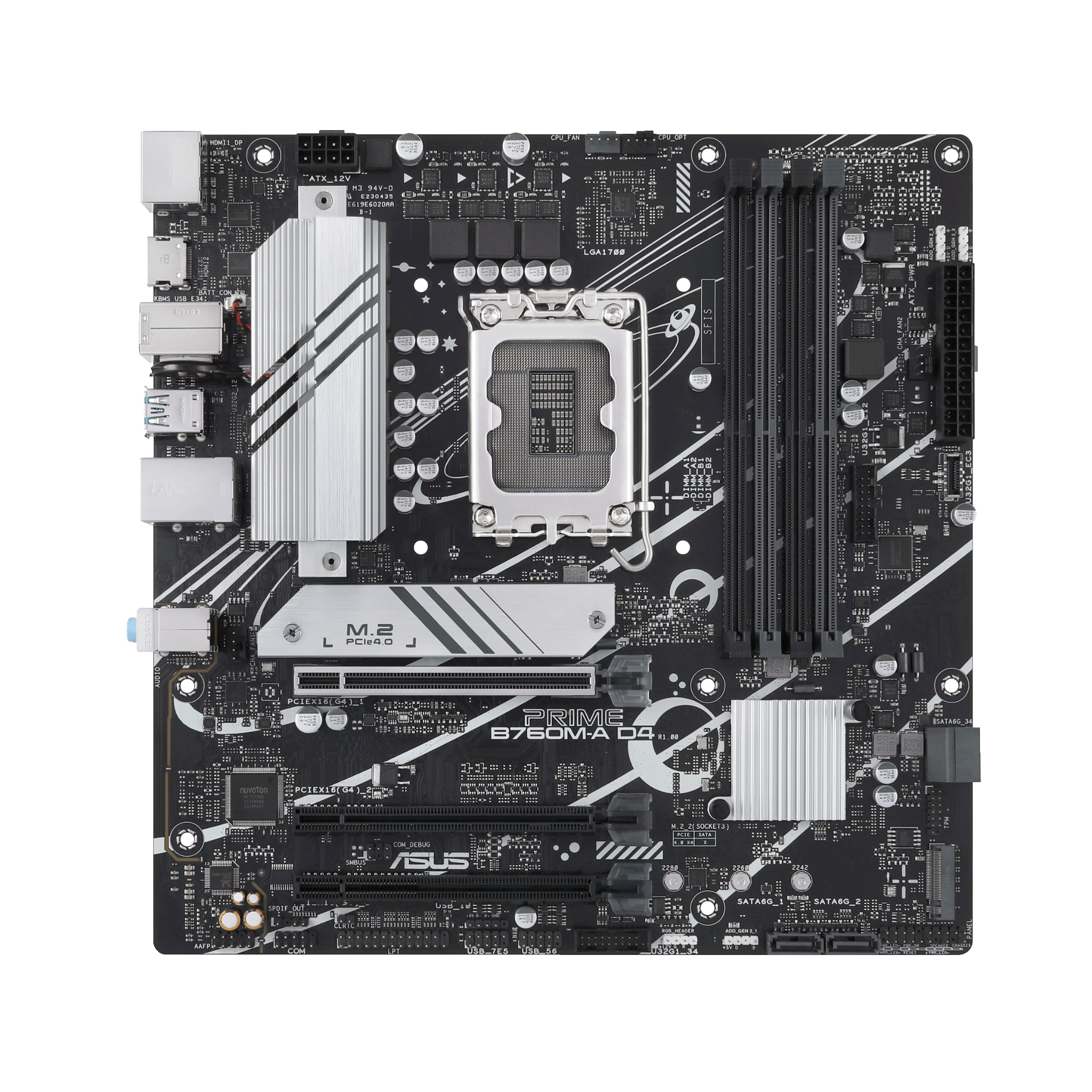

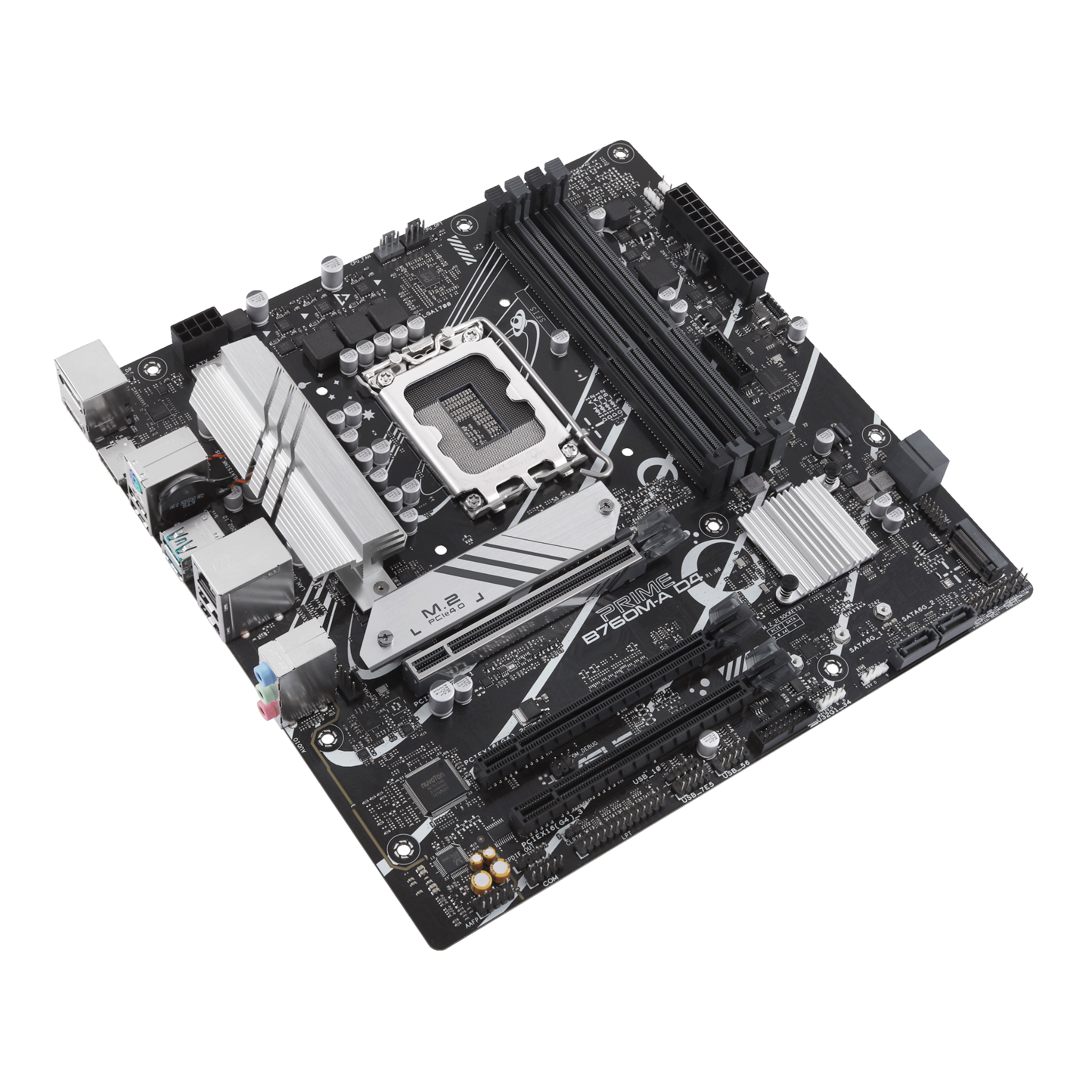

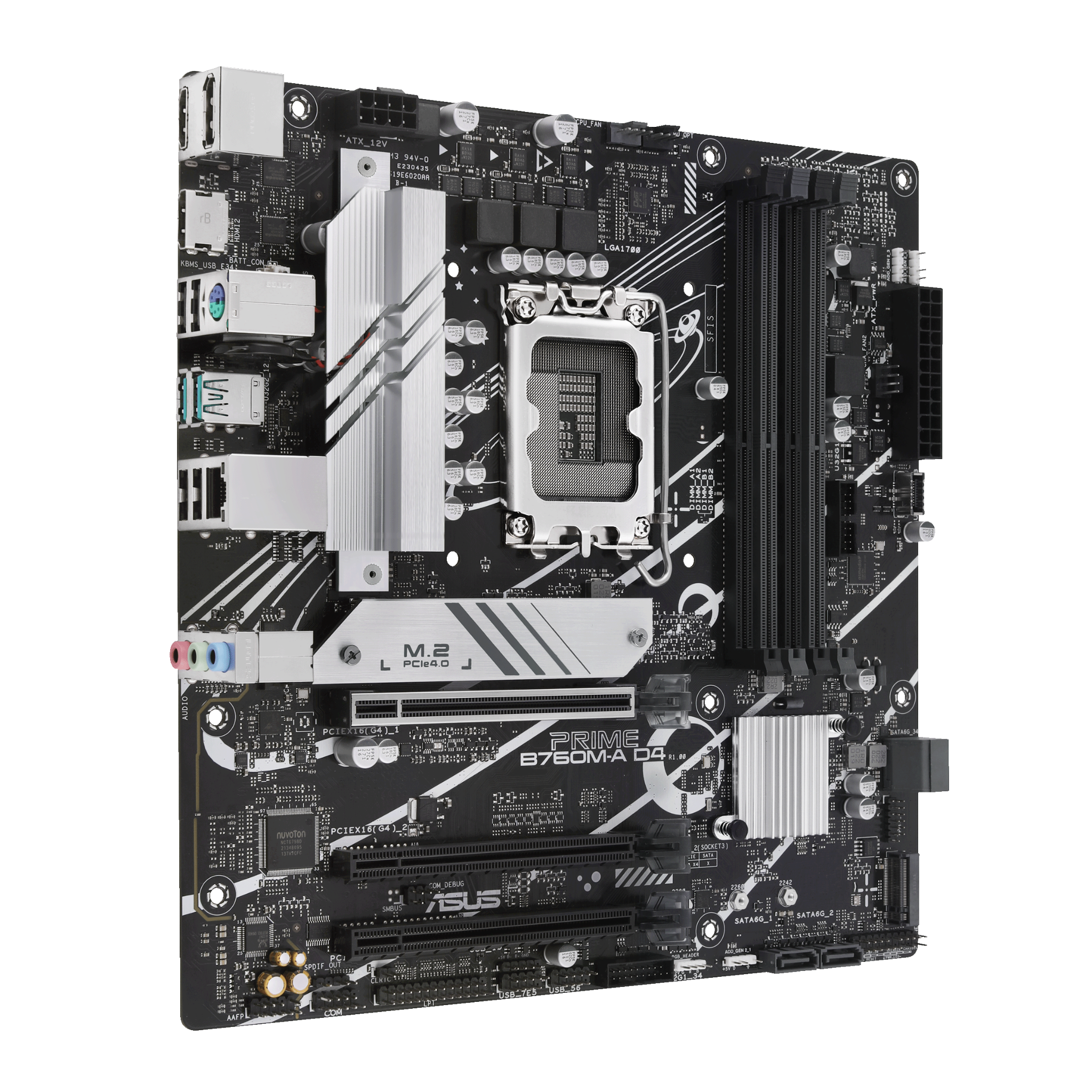

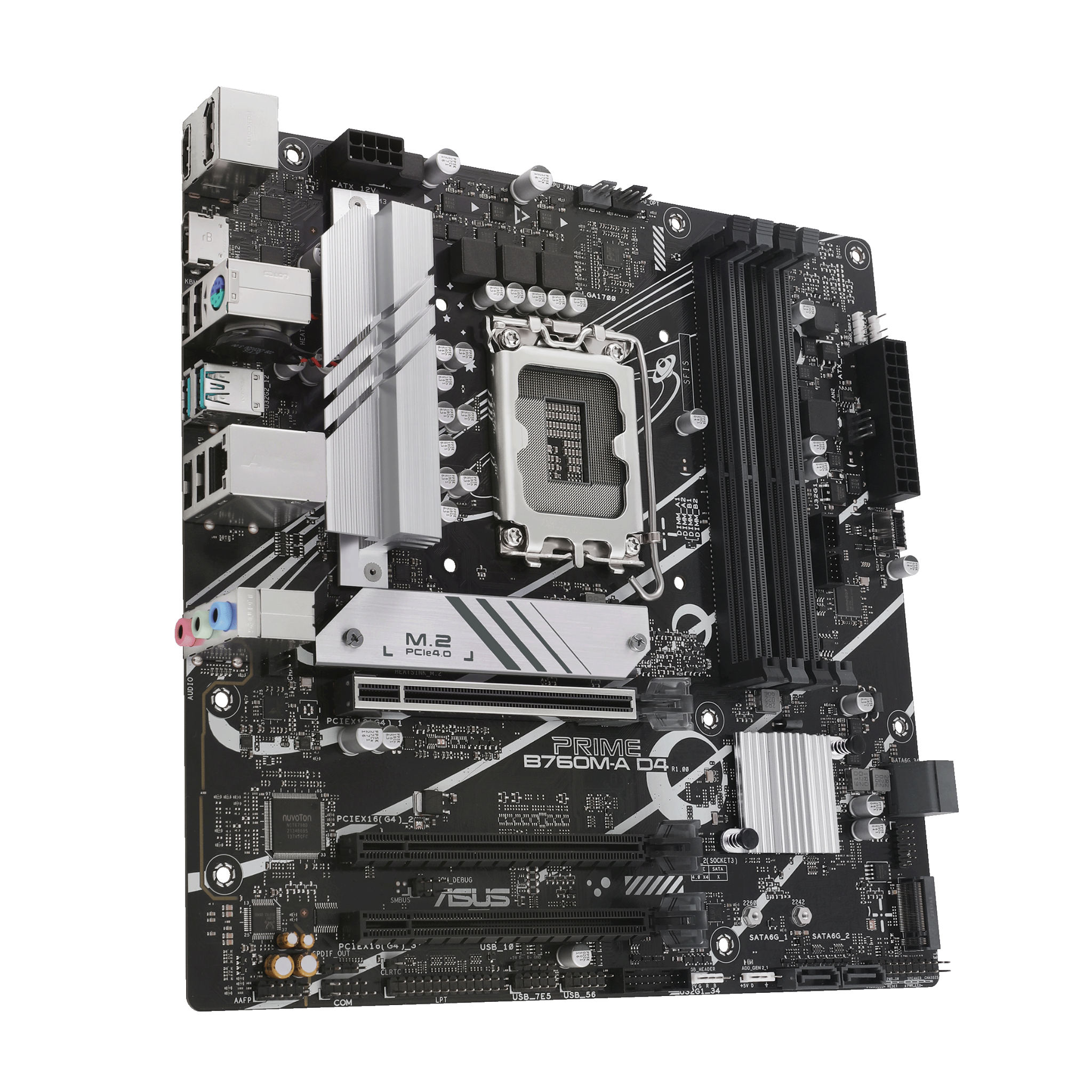

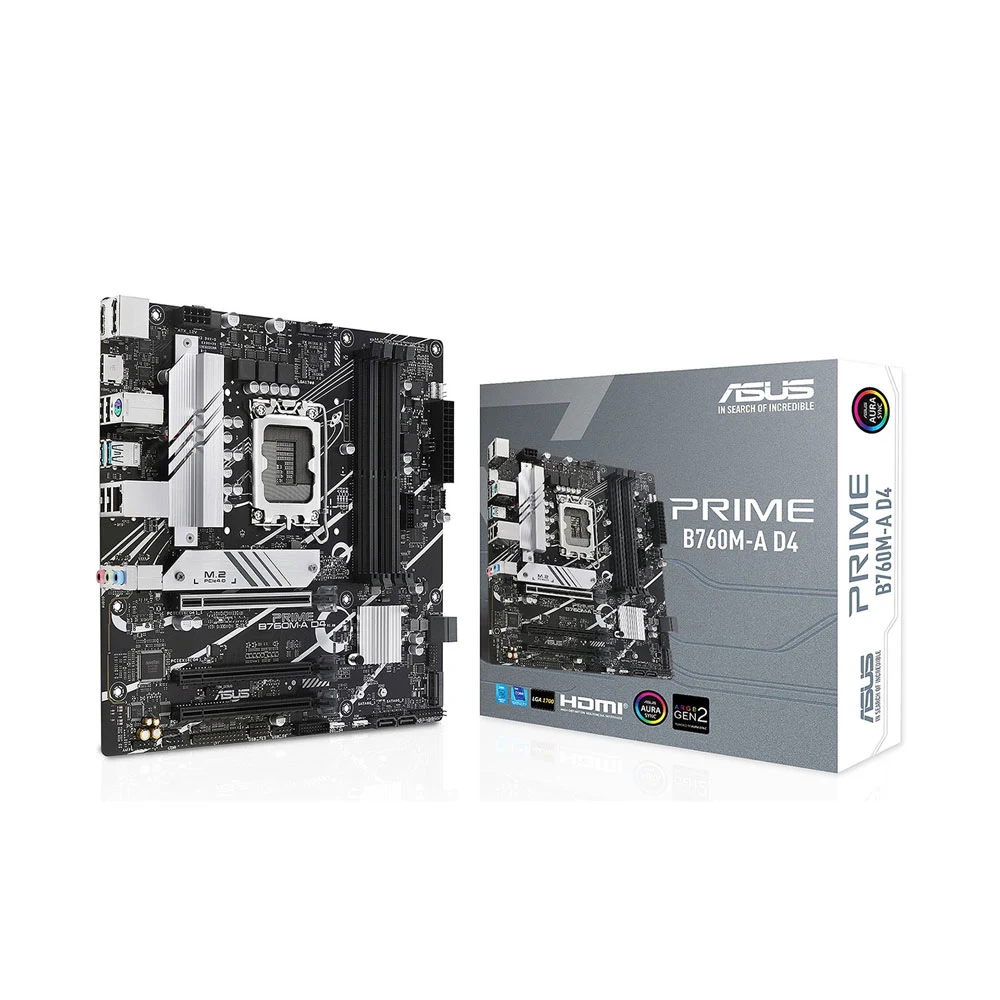

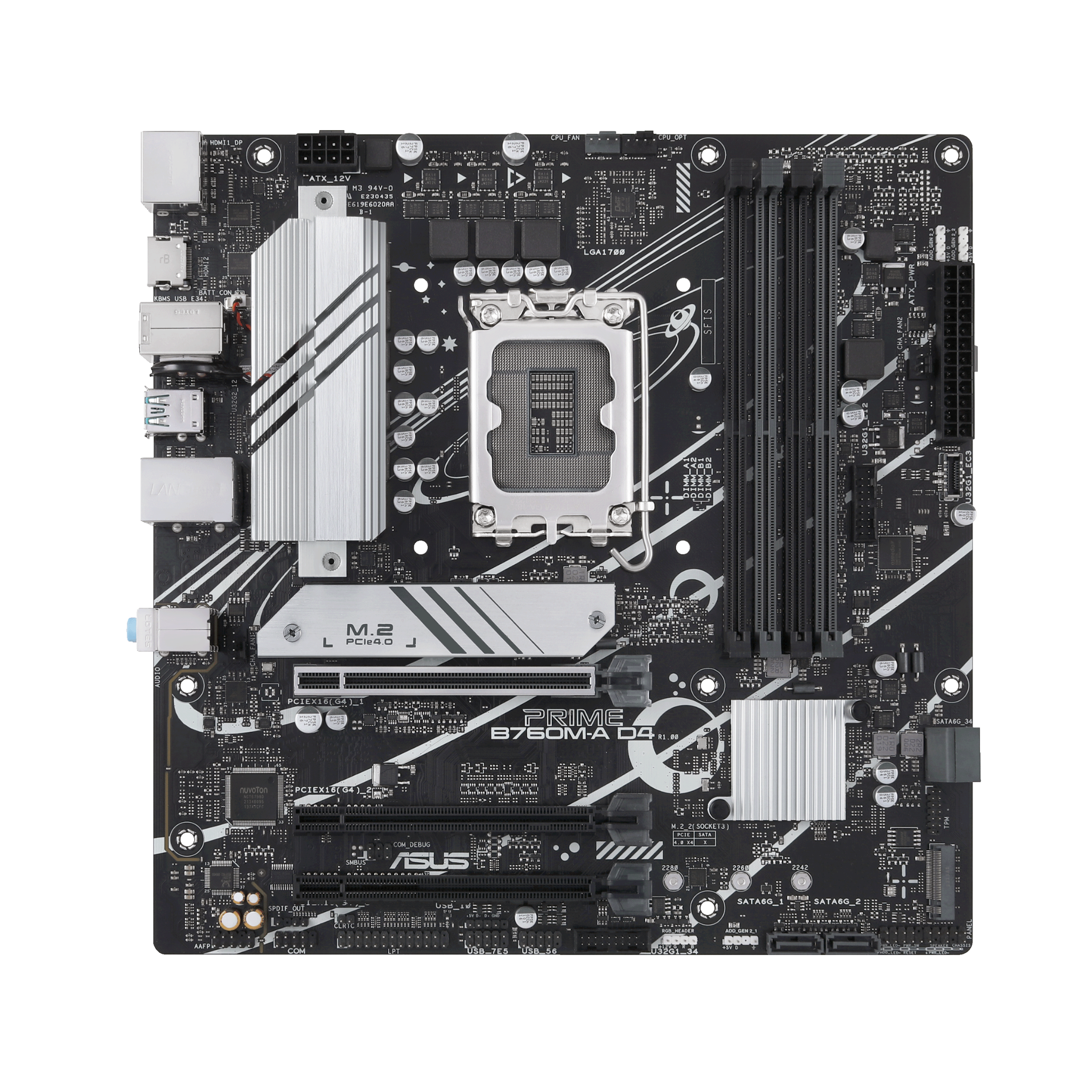

Mainboard ASUS Prime B760M-A D4-CSM DDR4 | LGA 1700, mATX, 4 khe RAM

CPU Socket

• LGA1700

Chipset

• Intel® B760.

Memory

• 4 DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz

Graphics

• 1 x DisplayPort 1.4 (max. 4K@60Hz)
• 2 x HDMI® 2.1 ports (max. 4K@60Hz)

Expansion Slots

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 4.0 x16 slot (x4 mode)
• 1 x PCIe 4.0 x16 slot (x1 mode)

Storage

• 2 x M.2 slots (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 2.5Gb Ethernet

USB

• Rear: 2 x USB 3.2 Gen 2, 4 x USB 2.0
• Front: Up to 4 x USB 3.2 Gen 1, Up to 4 x USB 2.0, 1 x USB 3.2 Gen 1 Type-C

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2, 4 x USB 2.0
• 1 x DisplayPort 1.4
• 2 x HDMI® 2.1
• 1 x Realtek 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 combo port

Internal I/O Connectors

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB headers for additional USB ports

Form Factor

• mATX (9.6 inch x 9.6 inch)
